Quick answer
ACX, BCX and CDX describe structural plywood with different face and back veneer grades. The first letter is the better face; the second is the back. “X” is commonly used in trade names to signal an exterior-type adhesive bond, but the panel stamp—not the nickname—must tell you whether the bond classification is Exterior or Exposure 1.
ACX gives the cleanest visible face of the three. BCX is a middle-ground utility panel. CDX prioritizes sheathing performance over appearance. None is automatically the right substitute for cabinet-grade hardwood plywood.

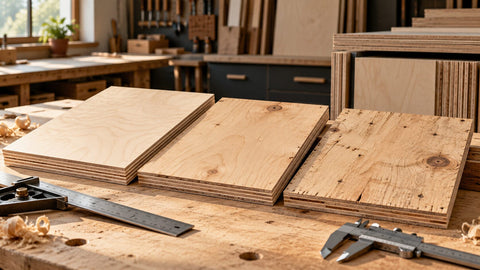

ACX vs BCX vs CDX at a glance
| Panel name | Typical face/back meaning | Surface expectation | Common fit | Cabinet caution |
|---|---|---|---|---|
| ACX | A-grade face, C-grade back | Sanded, appearance-oriented face with a lower-grade reverse | Painted or clear-finished utility panels, soffits, signs and selected exterior projects when the stamp permits | Check core gaps, thickness tolerance and back quality before using it for precise casework |
| BCX | B-grade face, C-grade back | Smoother face than CDX; repairs may be present depending on the governing standard and mill | Shop fixtures, utility cabinets, painted built-ins and general projects that need one presentable side | A decent face does not guarantee a cabinet-grade core or factory-finished interior |
| CDX | C-grade face, D-grade back | Knots, repairs and open defects are more likely; appearance is secondary | Roof, wall and subfloor sheathing when the panel stamp and project specification allow | Usually the wrong starting point for visible cabinet boxes, doors, fine joinery or edge finishing |
| Cabinet-grade hardwood plywood | Decorative hardwood faces over a specified cabinet core | Selected for appearance, machining and interior finish requirements | Cabinet boxes, built-ins, furniture and millwork | “Cabinet-grade” is not one universal construction; verify face, core, finish and actual thickness |
The letters are a useful starting point, not a complete specification. Product standards, mill stamps and supplier specifications control the actual panel.
What the letters—and the X—actually tell you
In a traditional veneer-grade designation, the first letter identifies the face and the second identifies the back. A is the cleanest appearance grade in the A–D sequence. Lower letters allow progressively more natural characteristics and repairs.
The “X” causes the most buying mistakes. APA explains that bond classification is about the moisture resistance of the adhesive bond. Exterior is intended for repeated wetting or long-term weather exposure. Exposure 1 is intended for limited exposure, such as construction delays, not permanent weather exposure. APA also warns that panels commonly called CDX are often Exposure 1 rather than Exterior.
A three-step buying check
For a deeper explanation of letter grades, use Berta’s plywood grades reference. If the project is already narrowed to a cabinet application, compare the cabinet-grade plywood selection criteria instead of assuming a structural panel will machine the same way.
Which one belongs in a cabinet shop?
BCX can be reasonable for shop storage, paint-grade utility cabinets or fixtures where the back is concealed and the core passes your inspection. ACX can provide a cleaner show face, but it may still be a poor value if you need two finished sides, consistent edge machining or a ready-to-use interior.
CDX is optimized for structural service, not for a refined cabinet surface. Its allowable face characteristics and core variability can create extra filling, sanding and edge work. That added labor can erase an apparent sheet-price advantage.
For finished casework, compare what BCX plywood is designed to do with CDX plywood’s sheathing role. The RTD versus CDX explanation is useful when the stamp references rated sheathing rather than a simple veneer-grade name.
Panels to compare after you rule out sheathing
3/4-inch B/BB Baltic BirchOne cleaner B face, one BB back, unfinished 4×8 construction and a multi-ply birch core. Useful when the visible face and machined edge matter more than a sheathing stamp.
Review the exact panel
3/4-inch prefinished birch plywoodA 4×8 cabinet panel with clear UV-cured birch faces on both sides and a multi-ply poplar core. It solves a different problem: a ready-to-use cabinet interior with less finishing labor.
Compare finish options
Common comparison mistakes
- Comparing only the best face and ignoring the back veneer and core.
- Assuming Exposure 1 and Exterior mean the same service condition.
- Calling every structural panel “exterior plywood.”
- Using a nominal thickness to size a dado without measuring the sheet.
- Choosing CDX for visible cabinetry because it is available in the right dimensions.
- Treating a smooth face as proof of a void-free or cabinet-grade core.
Plan the next decision
Frequently asked questions
Is BCX better than CDX plywood?
BCX normally has a better appearance face, so it can be easier to paint or expose in utility work. CDX is commonly selected as rated sheathing. “Better” depends on the panel stamp and use, not the letter sequence alone.
Is ACX plywood waterproof?
No plywood should be called waterproof from the ACX trade name alone. Confirm whether the panel is stamped Exterior or Exposure 1, then follow the design, finishing and edge-protection requirements for the application.
Can CDX be used for cabinets?
It can be used for rough shop storage or concealed utility construction if the sheet is suitable, but it is usually inefficient for visible cabinetry. Core gaps, face defects and finishing labor often make cabinet-grade plywood the more predictable choice.
Does BCX mean one side is furniture grade?
It means the face and back are assigned B and C veneer grades under the applicable standard. It does not automatically establish a furniture-grade core, two good faces or the tolerances required by a particular cabinet specification.
What should I measure before cutting?
Measure actual thickness at several points, inspect flatness and edges, and confirm which face will show. Use actual material dimensions for dados, rabbets, CNC files and hardware clearances.
Sources and scope
This guide separates veneer grade, bond classification and intended use using the current APA plywood guidance, the APA trademark explanation and PS 1-22 scope. Berta product details were checked against the live product records at draft time. A project specification, code requirement or manufacturer stamp overrides this general selection guide.
