Standard side mount

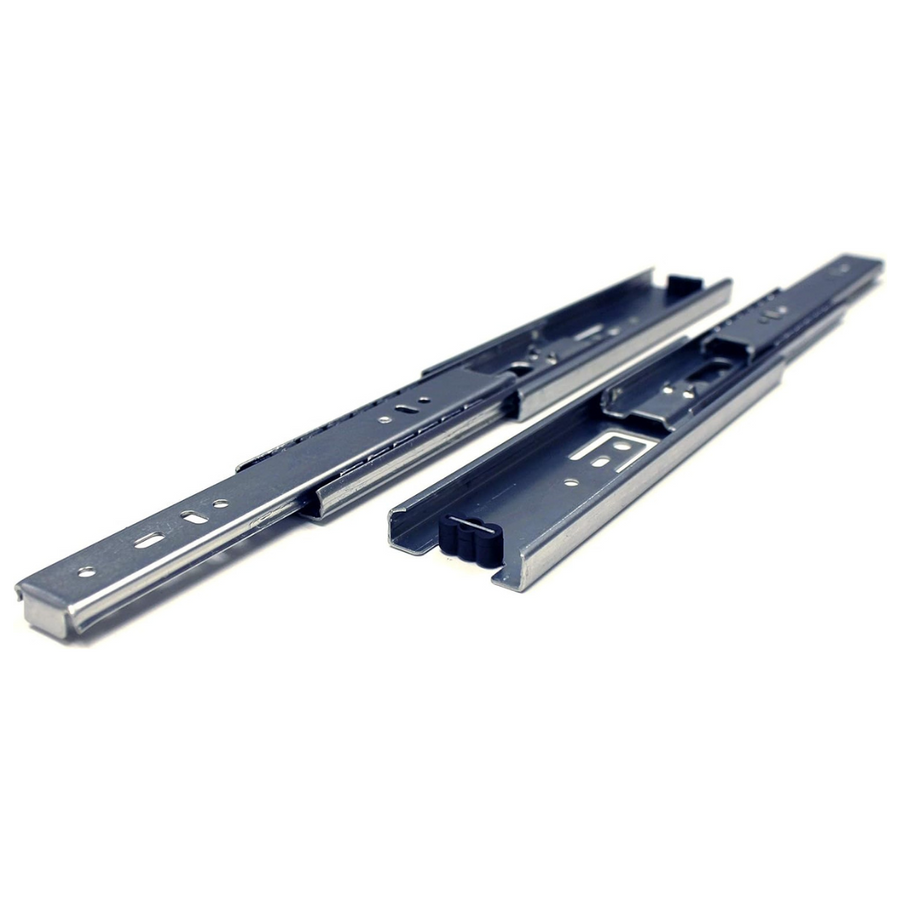

8 Inch Drawer Slides
A short slide for compact drawers with an 8-inch mounting plan.
10 pairs · 8 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Berta Store · Drawer Hardware
Full Extension Ball Bearing Drawer Slides
Choose the length that fits your drawer, then order a 10-pair pack. This collection brings together standard side-mount slides from 8 to 24 inches for cabinet and furniture projects.
Full extension describes access to the drawer; it does not mean soft close. Compare the closing action and mounting style before ordering.
Shop standard slides by length
Each product below is a 10-pair pack, not a single pair. Use the size links to compare nominal lengths and pack prices. Check each product’s fit requirements before ordering.
Standard side mount

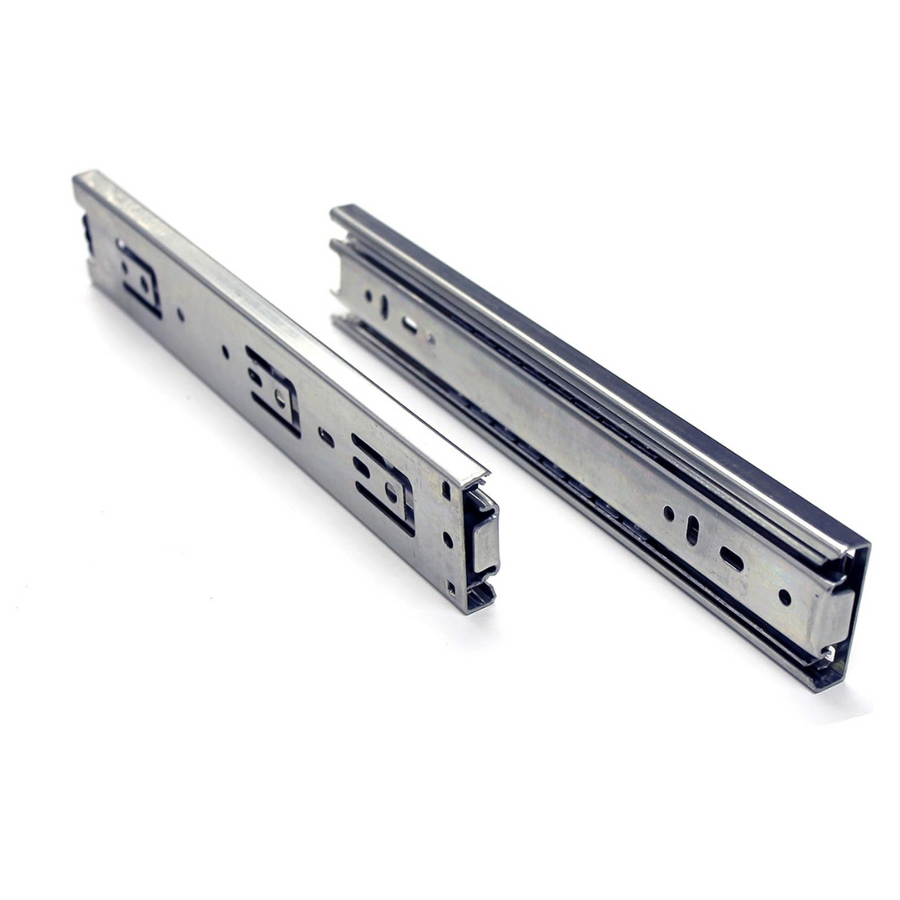

10 Inch Drawer Slides
A compact alternative when 10 inches fits the drawer and mounting space.
10 pairs · 10 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Standard side mount

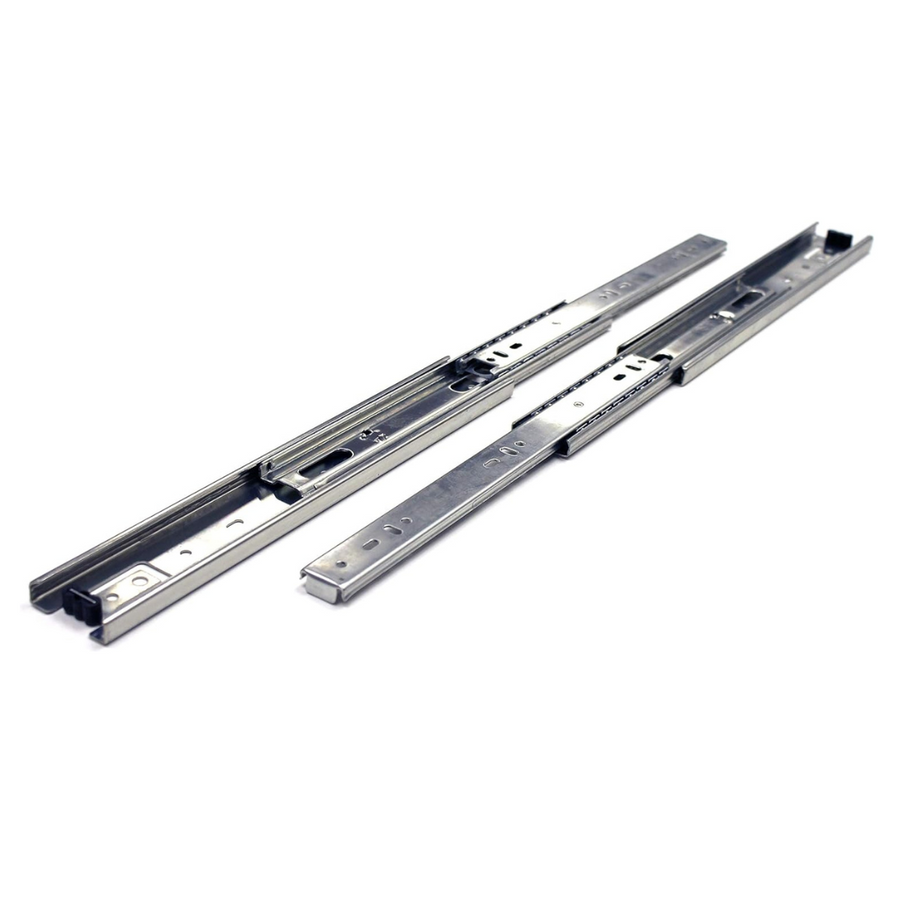

12 Inch Drawer Slides
A 12-inch option for measured cabinet or furniture drawer layouts.
10 pairs · 12 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Standard side mount

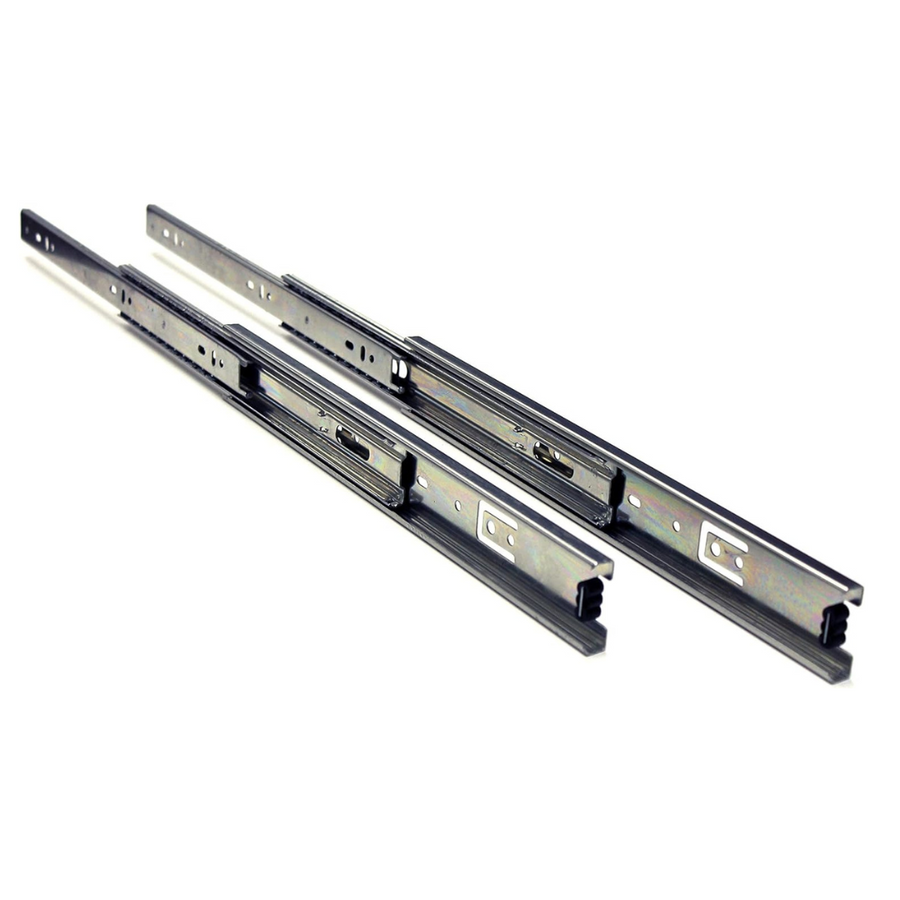

14 Inch Drawer Slides
An intermediate length between the 12- and 16-inch options.
10 pairs · 14 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Standard side mount

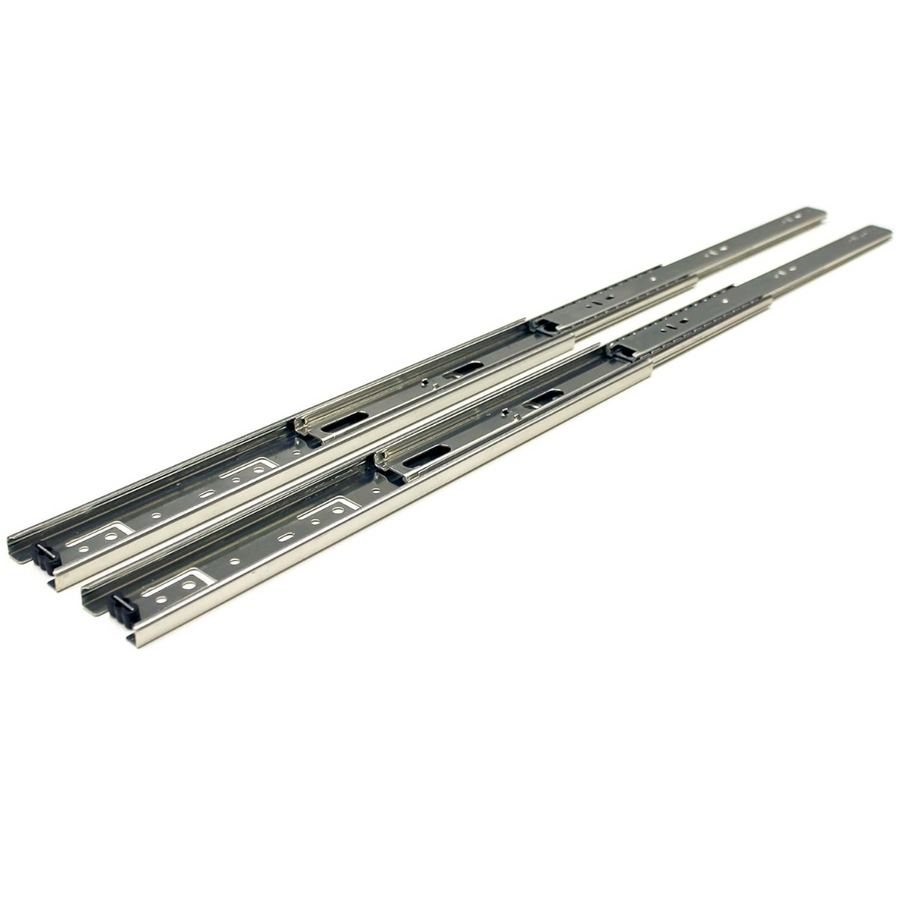

16 Inch Drawer Slides
A mid-length choice when the mounting plan calls for 16 inches.
10 pairs · 16 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Standard side mount

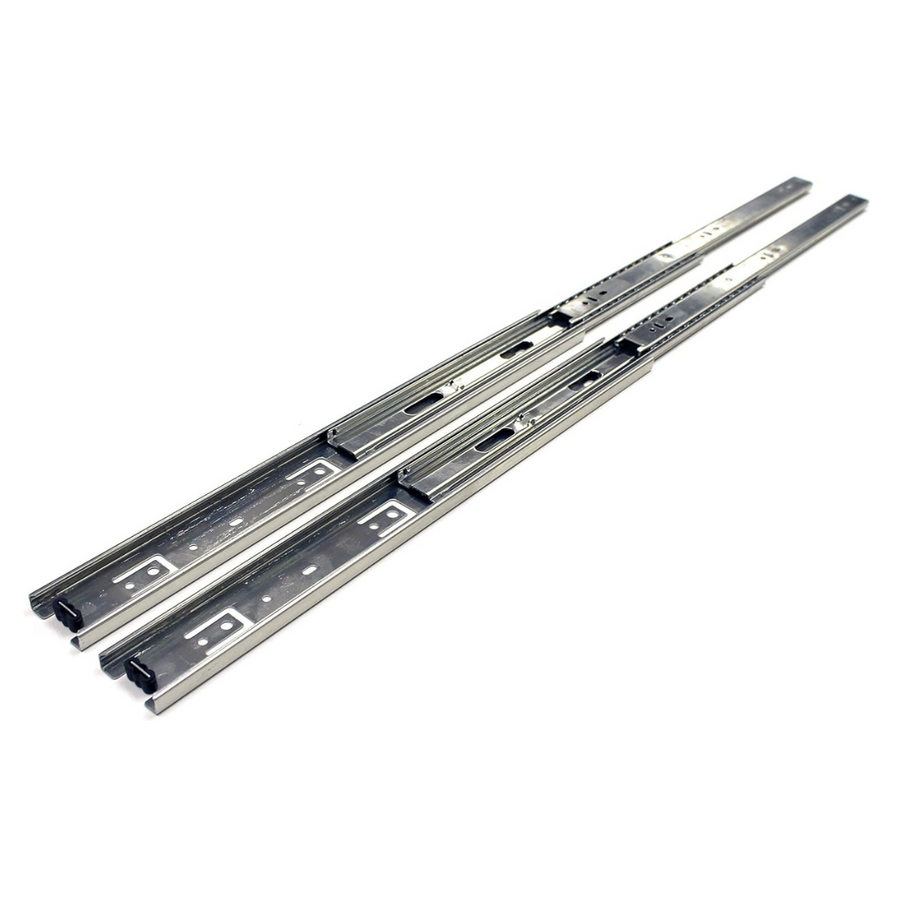

18 Inch Drawer Slides
Compare this length with your existing rail and usable cabinet depth.
10 pairs · 18 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Standard side mount

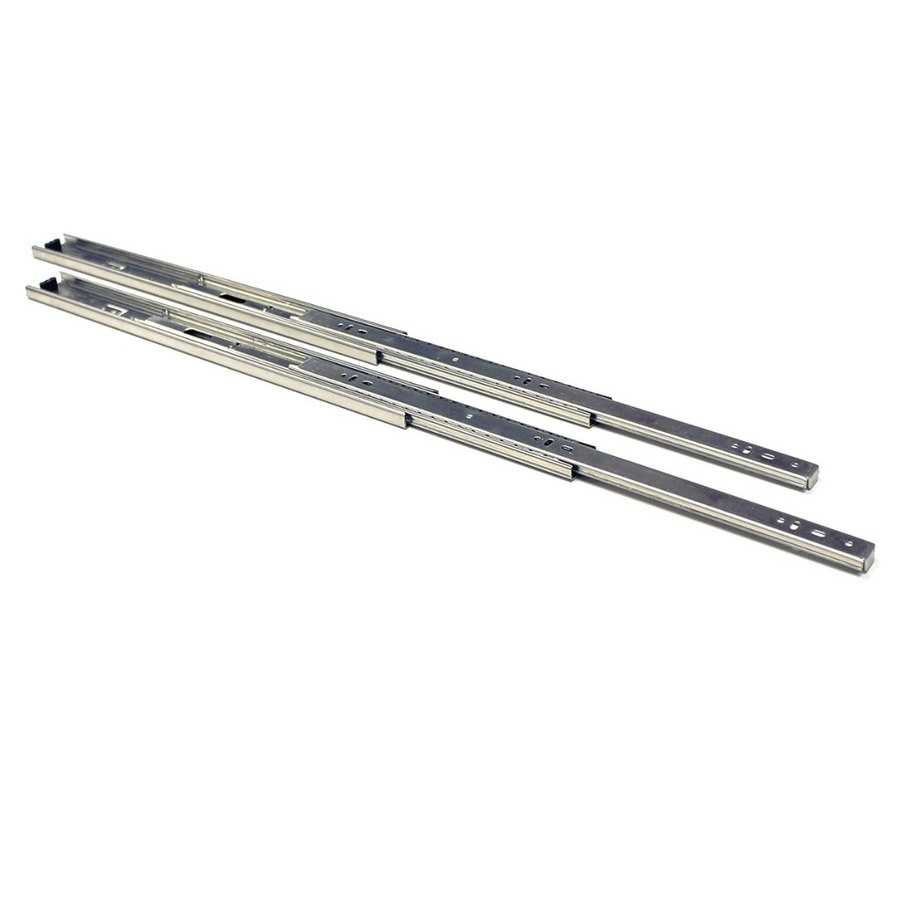

20 Inch Drawer Slides
For layouts with sufficient clear mounting space for a 20-inch rail.
10 pairs · 20 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Standard side mount

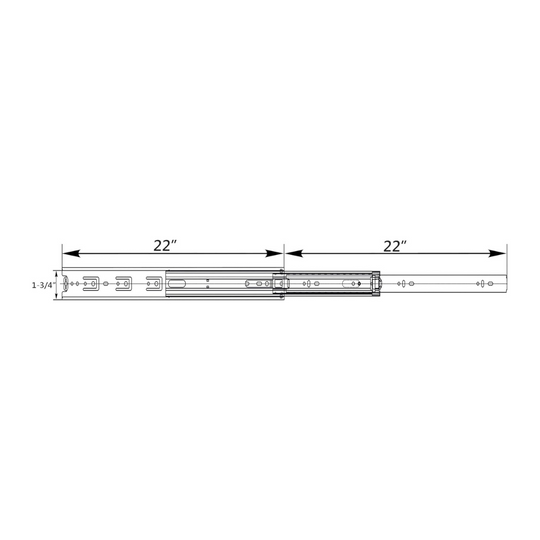

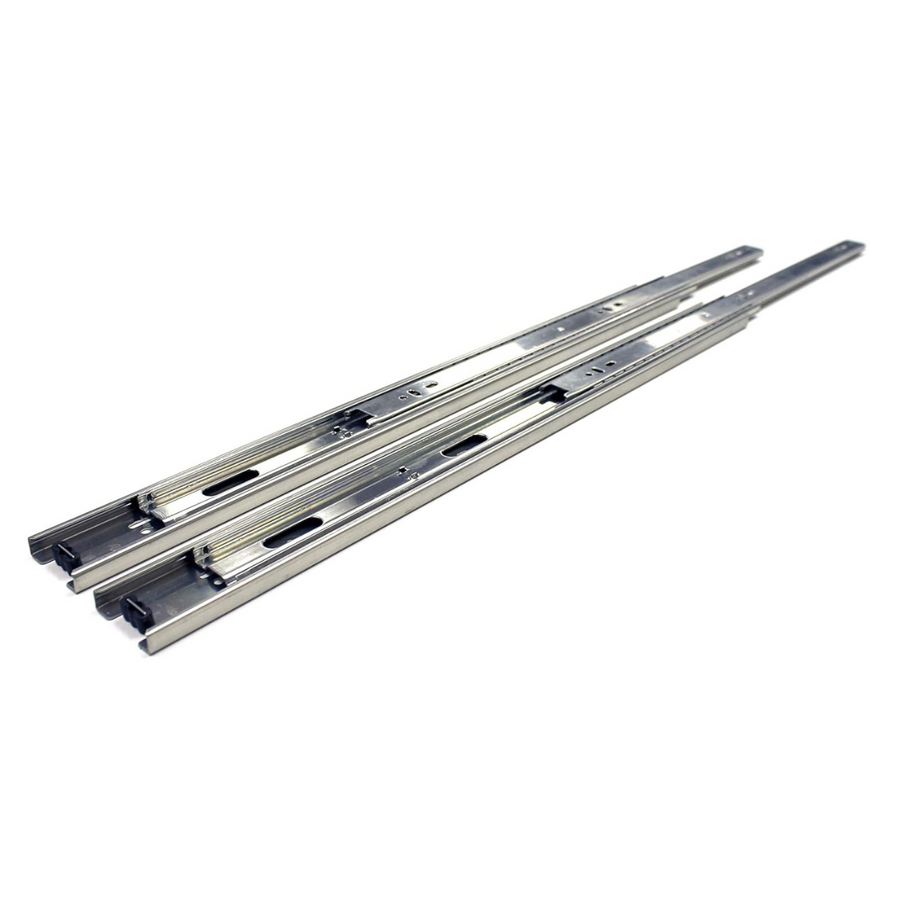

22 Inch Drawer Slides
A longer option; check front setbacks and rear hardware clearance.
10 pairs · 22 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Standard side mount

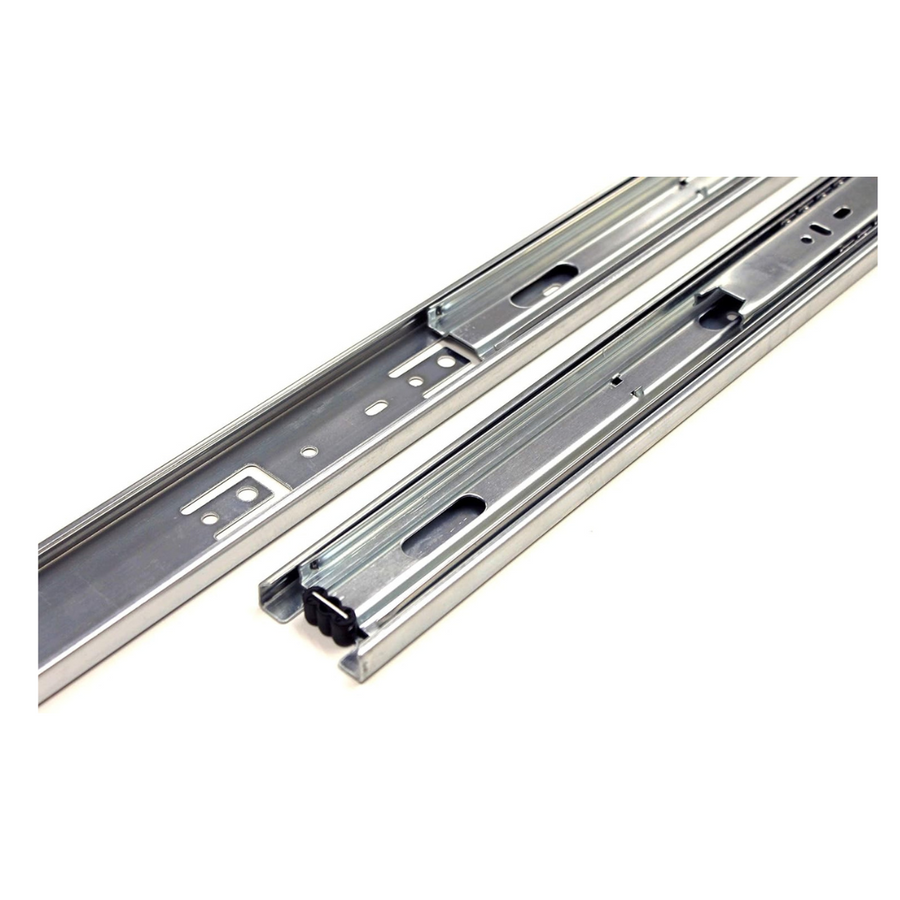

24 Inch Drawer Slides
The longest standard option in this collection; verify actual inside depth.
10 pairs · 24 in. nominal length
Full extension · Ball bearing
Full extension · Ball bearing
Full extension, soft close and undermount are different choices
Extension describes how far the drawer opens. Closing action describes how it finishes closing. Mounting style describes where the hardware attaches. A slide can combine full extension and soft close, but these standard products are not the separate soft-close model.
| Option | Mounting | Closing action | Listed lengths |
|---|---|---|---|
| This standard collection | Visible side mount | Standard; not the soft-close model | 8–24 in., in the sizes shown above |
| Soft-close ball bearing | Side mount | Soft close | 12, 14, 16, 18, 20, 22, 24 in. |
| Concealed undermount | Under the drawer | Soft close | 12, 15, 18, 21 in. |
Choose another system only after checking drawer-box dimensions, mounting hardware and the manufacturer’s instructions. A similar length alone is not a fit guarantee.
Measure the drawer—not just the cabinet exterior
For a replacement, measure the closed metal slide without including the decorative drawer front. For a new drawer, start with the mounting plane, the drawer-box length and the clear space behind it. Rear brackets, a face frame, an inset front or an obstruction can reduce usable depth.
- Check length: confirm the closed-slide dimension against the required mounting arrangement.
- Check both sides: verify the clearance required by the chosen slide and check that the drawer box is square.
- Check attachment points: compare mounting holes, screw length and a sound fastening surface.
- Check the working load: include the drawer itself and its contents, not just stored items.
The listings state a 1/2-inch slide thickness and approximately 1.8-inch profile height. These item dimensions are not a complete installation drawing. Confirm the required clearance and mounting tolerances before cutting drawer parts.
Face-frame brackets are listed for the 8, 12, 14, 16, 18, 20, 22 and 24 inch packs. The 10-inch listing confirms screws but does not confirm brackets; check that pack’s requirements before a face-frame installation.
Plan 10-pair packs for one slide length
One pair serves one drawer when used as a left-and-right side-mount set. A 10-pair pack supplies 20 slide assemblies for up to 10 drawer installations. Count each slide length separately; packs are not mixed-length assortments.
10 drawers require 1 pack of 10 pairs. For mixed lengths, calculate each length separately.
This is a quantity estimate, not a fit or load-capacity calculator. It does not add products to your cart.
Need soft close or concealed hardware?
These alternatives let you compare a different closing action or mounting system without confusing them with the standard slides above.
Different closing action
Soft-Close Side-Mount Slides
Ball bearing side mounts with a soft-close mechanism. Choose from the listed 12–24 inch lengths.
10-pair kit · Side mount
Different mounting system
Soft-Close Undermount Slides
Concealed soft-close hardware in 12, 15, 18 and 21 inch lengths. Drawer-box construction and mounting requirements differ from side mounts.
10-pair kit · Concealed undermount
Questions about ball bearing drawer slides
Does full extension mean soft close?
No. Full extension describes drawer travel and access to the rear. Soft close is a separate closing mechanism. This collection is the standard range; the linked soft-close products are different options.
Are these sold as individual pairs?
The listed products are 10-pair packs. Quantity 1 means one pack of 10 pairs. Quantity 2 means 20 pairs of the selected length—not two individual slides.
Can I choose the slide length from the outside cabinet depth?
Not reliably. Measure the usable mounting space and drawer box. A face frame, rear bracket, cabinet back or inset front can reduce the space available for the slide.
Are the longer slides rated to carry more weight?
The current standard product listings each state up to 100 lb; they do not establish a higher rating for longer sizes. Check the actual installation and supplier rating conditions. Do not multiply a rating by the number of pairs in a pack.
Can side-mount slides be fitted underneath a drawer?
Use these as side mounts. For concealed hardware, compare the undermount system and follow its drawer-box and installation requirements rather than rotating a side-mount slide.
What should I check before replacing existing hardware?
Compare closed length, side clearance, mounting-hole position, cabinet construction and any brackets or release mechanism. Match the physical installation, not just the name or a rounded metric conversion.
