Berta Store · Cabinet hardware

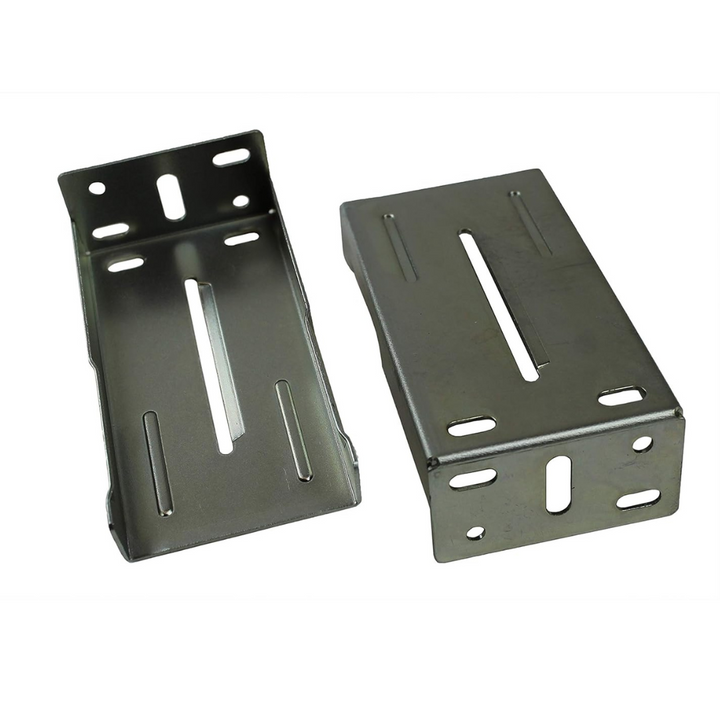

Support the rear of compatible side-mount drawer slides in face-frame cabinets. This 10-pair pack contains 20 steel brackets for matching installations, repairs, or spare-part needs.
Approximately $1.60 per pair, before shipping and tax.
A rear bracket supports the back end of a matching slide where the cabinet layout calls for rear mounting. Confirm the slide profile, bracket connection, and cabinet fixing surface before choosing a replacement.
The 45mm designation identifies the intended drawer-slide width. It does not establish cabinet side clearance, bracket depth, or compatibility with every 45mm slide.
Choosing a complete system? Compare the Berta drawer-slide range before selecting a separate accessory.
| Pack contents | 10 pairs / 20 brackets |
|---|---|
| Intended slide size | 45mm / approximately 1.77 inches |
| Material | Cold-rolled steel |
| Finish | Nickel plated |
| Application | Compatible side-mount slides in face-frame cabinets |
| Slide rails | Sold separately; this is a bracket pack |
A drawer-slide rear mounting bracket connects the rear of a matching slide to its cabinet support. The right choice depends on the slide profile and cabinet construction—not just the name “rear bracket.” Use this guide to compare mounting systems and check your parts before ordering.
In a face-frame cabinet, the slide mounting plane can sit away from the cabinet side. A compatible rear support may be part of that installation. Frameless and undermount systems can use different fixing methods. Start with the side-mount versus undermount comparison if you are identifying an existing system.
| Your installation | What to check | How this bracket pack fits the decision |
|---|---|---|
| Face-frame cabinet with side-mount slides | Slide profile, rear connection, mounting plane, and support surface. | Consider this pack for compatible 45mm slides when separate rear brackets are needed. |
| Frameless cabinet with side-mount slides | Whether the slide mounts directly to the cabinet side or needs another support arrangement. | Do not add rear brackets automatically. Follow the selected slide’s mounting requirements. |
| Concealed undermount slides | The runner’s own rear bracket, locking devices, and drawer-box requirements. | Do not assume interchangeability. The Berta undermount kit includes its own mounting components. |
| Replacement for an existing bracket | Brand/model, slide-end shape, bracket dimensions, and fixing pattern. | Match the actual parts. “45mm” alone is not a complete compatibility check. |
For slide mechanisms and terminology, read Drawer Slides 101: types, features, and selection. Compare available lengths in the full-extension ball-bearing slide collection.
For this product, 45mm—approximately 1.77 inches—is the listed drawer-slide width designation. It is not the slide length, the cabinet-to-drawer side gap, or a published measurement of every part of the bracket. Compare the slide manufacturer’s profile drawing and rear connection before selecting a replacement.
Use the instructions for the exact slide system. Confirm bracket engagement, fixing locations, fastener selection, and the suitability of the cabinet support before drilling.
Check that both slides remain aligned and the drawer moves freely after installation. A rear bracket does not change the slide manufacturer’s load rating or clearance requirements.
For an existing drawer, use the replacement drawer-slide measurement checklist to organize the fit details before ordering.
The quantity selector orders complete packs. Use this chart to translate packs into pairs and individual pieces. It counts brackets only; the number needed for a project depends on the actual mounting arrangement.
Bar length represents pair count. Each pair contains two brackets.
| Packs | Pairs | Pieces |
|---|---|---|
| 1 | 10 | 20 |
| 2 | 20 | 40 |
| 5 | 50 | 100 |
Check the details that matter before choosing a drawer-slide bracket.
One pack contains 10 pairs, or 20 individual rear mounting brackets. Drawer-slide rails are sold separately. Confirm screw contents with Berta before ordering if your project depends on included fasteners.
No universal fit is claimed. The intended slide size is 45mm, but the slide-end profile, connection, and cabinet mounting arrangement must also match. Send your slide model or clear photos to Berta for a fit check.
No. It is the listed slide-width designation for this bracket’s intended application. Use the exact slide’s installation specification for cabinet-to-drawer clearance; do not use 45mm as that allowance.
Do not assume these side-mount application brackets interchange with undermount components. Berta’s undermount kit comes with its own rear brackets and locking devices. Identify the runner first when replacing an undermount part.
The confirmed pack quantity is 20 brackets. Ask Berta to verify screw inclusion and the fixing requirements for your cabinet material and slide system. A single screw size should not be assumed for every installation.
Confirm orientation for the supplied bracket and matching slide before installation. A pack described as “10 pairs” does not by itself establish whether the pieces are handed or interchangeable.
Several do. The soft-close side-mount kit and the 18-inch and 22-inch ball-bearing kits list face-frame brackets and screws. Check the kit contents before adding a separate pack for replacement or spare use.
The 45mm designation identifies the intended slide size. For bracket depth, height, hole spacing, or a replacement match, contact Berta with the slide model and photos before ordering. Do not scale measurements from product photography.
The product specification lists cold-rolled steel with a nickel-plated finish. This description applies to the brackets; related slide products may use different finishes.
Contact Berta for delivery or Pennsauken pickup arrangements for your order. Review the store’s shipping and return policies before purchase, and confirm the bracket fit before installation.
Explore slide kits for a new build or replacement project. These recommendations are product comparisons, not a guarantee that this bracket fits every listed slide. The kits below list their own brackets, so check included parts before adding accessories.

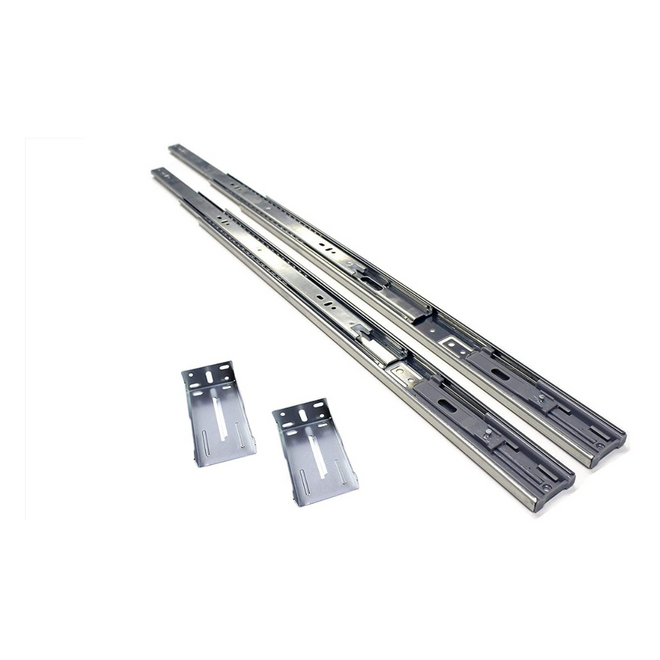

Compare lengths for a soft-close project. Face-frame brackets and installation screws are included.

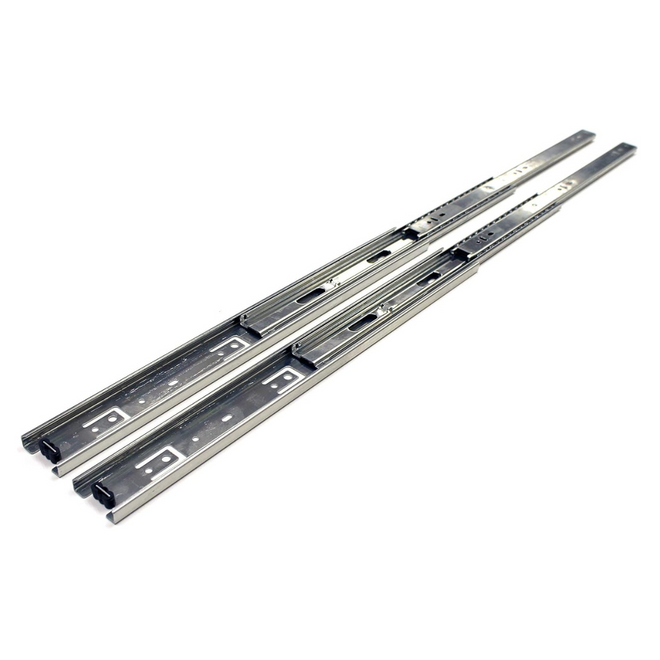

A 10-pair side-mount pack for an 18-inch slide application. Brackets and screws are included.

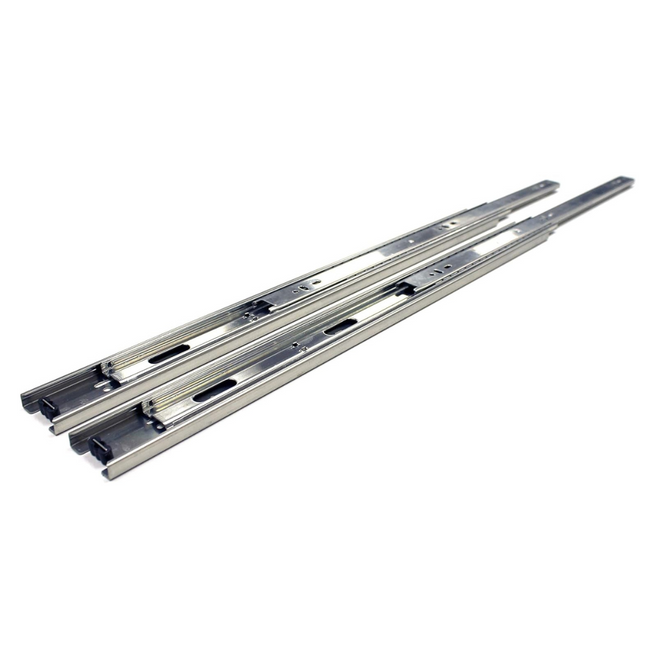

Compare cabinet and drawer depth for a 22-inch slide. Brackets and screws are included.

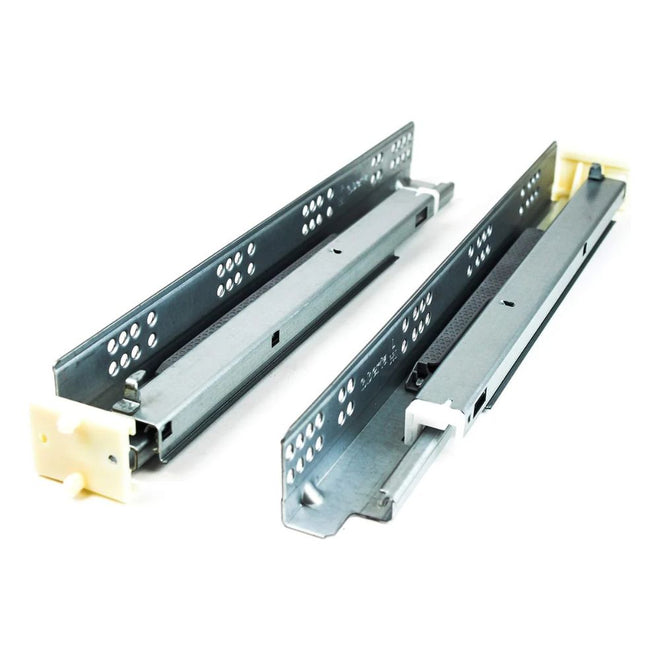

A concealed-slide alternative with its own rear brackets, locking devices, and screws. This bracket pack is not an assumed substitute.
On a small screen, swipe the product cards to compare all four kits.
Slide fit and drawer-box dimensions work together. Use the drawer-box plywood thickness chart to review sides, bottoms, and slide restrictions before cutting material.
Review Baltic birch plywood for drawer-box projects and prefinished plywood options. Select the actual panel thickness to suit your joinery and the chosen slide specification.
Have a slide model, an old bracket, or a cabinet photo? Send the details to Berta Store so the fit can be checked for your project.
