Cabinet Box Estimator

Estimate plywood and MDF sheets for cabinet boxes using real cabinet dimensions.

Save
Time

Cut
Waste

Instant
Results

Plywood and cabinet project calculator tools

What Does This Calculator Do?

It estimates how many plywood or MDF sheets you may need to build cabinet boxes based on the cabinet dimensions, construction settings, sheet size, and material allowance you enter.

Berta Store · Project planning

Enter your cabinet sizes below to estimate how many plywood or MDF sheets you’ll need.

Plan frameless cabinet boxes with editable dimensions and separate carcass/back sheet estimates.

Material planning only—not a certified cabinet design, optimized nesting diagram, or guaranteed minimum sheet count.

1. Cabinet dimensions

Choose your input methodModes retain separate inputs; cabinet lists are not converted automatically.

All dimensions are in inches. Enter outside box width and height, and side-panel depth. Depth excludes the applied back; height excludes separate legs, plinths and countertops.

Base cabinets

Cabinet countShelves per cabinet

Average width OR complete list (in)Enter one width for all cabinets, or exactly one listed width per cabinet.

Outside box height (in)Editable preset; no toe-kick notch is cut.Side-panel depth (in)Does not include the back panel thickness.

Wall cabinets

Cabinet countShelves per cabinet

Average width OR complete list (in)Enter one width for all cabinets, or exactly one listed width per cabinet.

Outside box height (in)Editable preset; no toe-kick notch is cut.Side-panel depth (in)Does not include the back panel thickness.

2. Construction & material

Material used for the carcassesBoxes only: no doors/fronts, structural check or automatic product selection.Actual carcass panel thicknessMeasure your stock. Nominal 3/4-inch and actual 18 mm are not equal.Base-cabinet top constructionWall cabinets always include a solid top and bottom between the sides.

Include applied cabinet backsFull outside width × height. These are applied backs, not inset or dadoed backs. Mounting rails and fastening details are not included.

Actual back panel thickness

Construction allowances & grain direction

Base stretcher width (in)Two strips, each spanning the inside cabinet width.Base shelf front setback (in)Subtracts from side depth for each base shelf.Wall shelf front setback (in)Subtracts from side depth for each wall shelf.Total shelf width clearance (in)Subtracts from inside width, not from each side. Adjust for your shelf fit.Carcass grain / rotation

Back grain / rotation

Locked B follows sheet length: vertical on sides/backs; across cabinet width on horizontal parts. Veneer matching and good-face selection are not modeled. Review other grain conventions separately.

Exactly what this construction model includes

Rectangular full-height sides. Tops/bottoms fit between sides: inside width = outside width − 2 × actual thickness.
Base top: stretchers or solid. Wall top: solid. Shelves use your setbacks and width clearance.
Applied backs cover the rear. Overall depth = side depth + back thickness.
Doors, drawer boxes, fronts, face frames, toe-kick cuts/facing, decorative end panels, mounting rails, countertop, edge banding and hardware are excluded. No load, mounting or structural design is certified.
Check joints, grooves, clearances, banding, stock tolerances and construction before cutting.

3. Sheets, saw kerf & allowance

Carcass sheets

Sheet size

Use actual stock dimensions. Pool sizes are independent; presets do not imply stock.

Back sheets

Sheet size

Use actual stock dimensions. Pool sizes are independent; presets do not imply stock.

Saw kerf (in)Blade-width gaps between retained pieces. Use 0 only for a theoretical zero-kerf check.Trim on EACH sheet edge (in)0.25 removes 0.5 in from sheet width and 0.5 in from sheet length.Extra area allowance (%)Target reserve as a percentage of net part area; adjustable from 0 to 25%.

Allowance is counted once. Remaining offcut area after fitting and kerf counts toward your reserve. Sheets are added only for an area shortfall. Offcuts do not guarantee replacement parts; select explicit spares for uncut reserves.

Optional whole-sheet spares

Extra uncut carcass sheets

Extra uncut back sheets

Review the example, then calculate.

Your cabinet-box material estimate

Review cabinet dimensions & assumptions

Review the component list / bill of materials

Inches; planning parts, not cutting order. B follows grain when locked.

One of the most frustrating parts of building cabinets is figuring out how many plywood or MDF sheets you’ll need. Guess too low, and you’re left short in the middle of a job. Guess too high, and you’re stuck with expensive panels sitting unused. That’s why Berta built the Cabinet Box Calculator—a tool made specifically for kitchen and closet cabinet carcasses.

This estimator covers the rectangular frameless base and wall cabinet boxes entered above. Adjust the example dimensions to match your project. Doors, drawer boxes, drawer fronts, face frames, decorative end panels, toe-kick components, mounting rails, countertops, and hardware are not included.

How the Cabinet Estimator Works

The Cabinet Box Calculator goes beyond a simple area measurement. Instead of just wall size, you enter the number of base cabinets and wall cabinets, along with their average widths and shelves. The calculator then breaks the job into its real-world parts:

Cabinet sides, tops, bottoms, and shelves (3/4" actual thickness by default; editable). Base tops can use two stretchers instead of a solid panel.
Optional cabinet backs (1/4" actual thickness by default; editable).
Separate saw kerf, sheet-edge trimming, and extra-area allowance (10% extra-area allowance by default; adjustable from 0–25%).

The tool is preset to a standard 4×8 sheet (32 sq ft) but also supports 49×98, 5×5, 5×10, or even custom sheet sizes. Choose the actual dimensions of the panels you intend to buy; not all Baltic birch products use the same sheet format. Carcass and back sheets have independent size settings.

You can also enter exact cabinet-size rows in Detailed mode. Each row has its own quantity, width, height, side-panel depth, and shelf count. In Quick mode, one average width applies to every cabinet, or a complete width list must match the cabinet count exactly.

Review the construction assumptions. The model uses full-height sides and butt-jointed horizontal parts between those sides. Backs are applied over the outside rear, so the entered side depth excludes back thickness. Select measured panel thickness rather than assuming a nominal 3/4" panel is exactly 0.75". Actual 18 mm and 0.75" are different dimensions.

The calculator generates a component list and fits the rectangles into separate carcass and back sheet pools, allowing rotation only when the grain setting permits it. It tries six deterministic guillotine-placement passes and uses the best result it finds. This is a fit-aware material estimate, not an optimized nesting diagram, a proven minimum sheet count, or a fabrication-ready cutting sequence.

Save Time, Cut Waste, and Order With Confidence

If you’re building a full kitchen, closet system, or garage cabinetry, this tool gives you:

A realistic sheet-count starting point based on cabinet construction, not just wall area.
Separate recommendations for carcass sheets and back sheets, using your selected thicknesses and sheet dimensions.
A built-in extra-area allowance to help plan reserve material.
A direct link to order the right panels at Berta.

Contractors can use it for preliminary material planning, and homeowners can use it to help avoid surprises during a project.

This helps you estimate sheet counts for cabinet carcasses without doing complicated math by hand. Review the component list, construction assumptions, and cutting requirements before relying on the result for purchasing.

Order the Right Panels from Berta

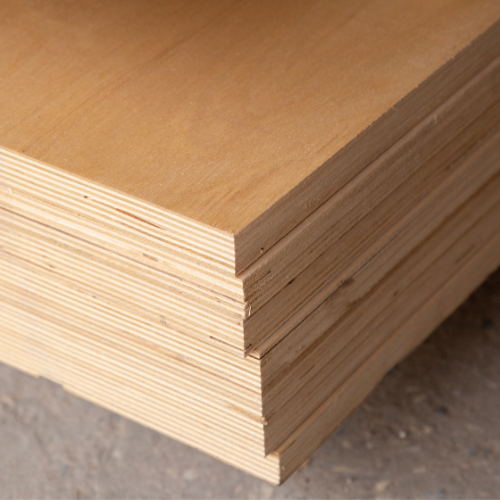

Prefinished Plywood 4×8– durable, smooth panels for cabinetry and shelving.
Prefinished Baltic Birch Plywood 4×8– natural birch faces with a transparent protective film for cabinetry, shelving, and interior furniture.

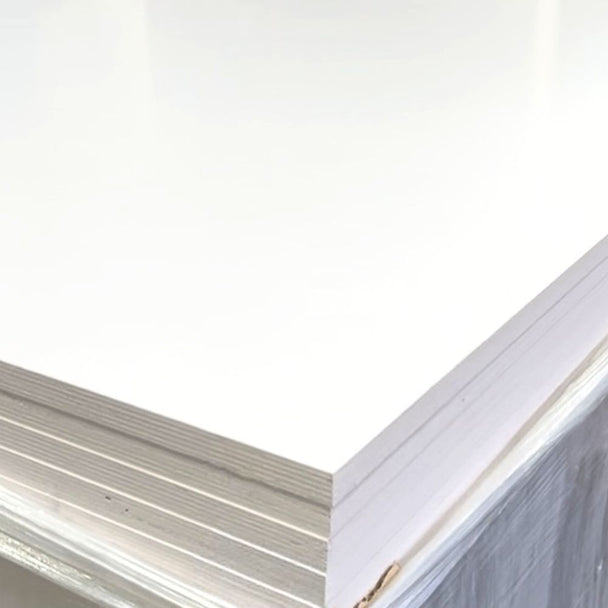

White Melamine Baltic Birch Plywood — 49×98– bright, clean white melamine faces, great for modern cabinetry.
Baltic Birch Unfinished B/BB– one clean face, ideal for visible cabinet parts.
Baltic Birch BB/BB– consistent both sides, excellent for structure.
Premium Acrylic MDF 4×8– factory-finished acrylic MDF in matte and high-gloss options for doors and panels planned separately from this box estimate.

Match the product’s actual thickness, sheet size, finish, and application to the estimate. A 49×98 sheet count cannot be carried over unchanged to a 48×96 product. Backing panels remain a separate purchase; changing the carcass material does not remove the back requirement.

When to Use Plywood vs MDF

Plywood: strong, screw-holding, reliable for cabinet boxes, shelving, and structural parts.
Unfinished MDF: a smooth surface for painting or laminating, useful for doors, drawer fronts, and decorative panels.

A project may use a mix—plywood for boxes, MDF for doors and trims.

Raw MDF and acrylic-faced MDF are not the same finish. Berta’s acrylic MDF panels already have a decorative surface. Selecting MDF in this calculator still estimates cabinet-box parts only; it does not add doors or fronts, or assess load capacity or suitability for damp conditions.

Before You Order

Planning tip: The calculator already rounds its result to whole sheets and includes the allowance shown. Do not automatically add another sheet just because the result is a whole number. Choose optional spare sheets explicitly when you need uncut reserve panels for mistakes, defects, matching, or damage.

The extra-area target is a percentage of net part area. Offcut area remaining after the fit check and kerf counts toward that reserve; additional sheets are added only when the area target is not met. Offcuts may be too small or the wrong shape for a replacement side or back, so spare area is not the same as a spare part.

Check joinery, shelf clearances, edge banding, stock tolerances, grain and face orientation, support, and mounting details before cutting. The estimate does not certify a cabinet’s strength or installation.

For details about delivery zones, shipping minimums, and pickup options, check our FAQ page. To explore our full selection of plywood, MDF, and cabinet hardware, visit the BertaStore main page.

Difference Between Calculators

Berta offers complementary free tools to make your projects easier:

General Plywood & MDF Calculator

Designed for paneling, wall cladding, closets, and general woodworking projects.
Calculates coverage by area (length × height – openings).
Best when you need to estimate material for large surfaces.

Cabinet Box Calculator

Designed specifically for kitchen and closet cabinet carcasses.
Calculates by cabinet count, width, height, side depth, shelves, and optional applied backs.
Separates carcass and back sheets at your selected thicknesses.

Best when you need a component-based starting point for cabinet building.

Plywood Cut List Calculator

Designed for projects where you already have a list of individual parts.
Estimates sheets from part dimensions and quantities.
Use separate runs for different thicknesses, materials, and finishes.

These tools help save planning time and manage material waste—but the Cabinet Box Calculator is the go-to starting point when your project is cabinetry.

Copy or save your component list before reviewing another tool. Lists do not transfer automatically between calculators. Explore the Project Calculators hub for the rest of Berta’s planning tools.
