CNC and finishing workflow
Quick answer

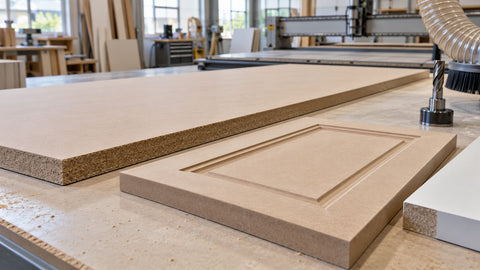

Unfinished 3/4-inch MDF in a 4×8 sheet is a practical choice for CNC-routed cabinet doors, painted panels, templates and interior components when a smooth, uniform substrate matters. Berta Store’s current Unfinished MDF product is listed at a nominal 48 × 96 inches, 3/4 inch thick, raw on both faces and intended for dry interior use.
Raw MDF is not paint-ready straight from the router. Vacuum the dust, ease fragile edges, repair machining defects, seal thirsty routed edges, prime the complete part and test the full coating system on an offcut. Use effective dust extraction and follow the tool and coating manufacturers’ safety instructions.
Surface behavior
One panel, three preparation zones
| Zone | Typical condition after machining | Preparation priority | Common failure to avoid |
|---|---|---|---|
| Factory face | Relatively smooth and dense, but dusty or burnished areas may remain | Vacuum, inspect under raking light, lightly prepare as required by the coating system, then prime | Over-sanding through the surface or trapping fine dust under primer |
| Cut edge | More porous fiber structure exposed | Ease sharp corners, remove fuzz, seal/prime, sand the raised fiber and repeat as needed | Expecting one face coat to hide absorption and edge texture |
| Routed profile | Mixed end grain and compressed fibers; inside corners collect dust | Inspect tool marks, detail-vacuum recesses, seal uniformly and sand without flattening the design | Leaving ridges, fuzzy corners or primer pools in the profile |
| Fastener area | Material can split or mushroom if the pilot, screw or edge distance is wrong | Run a joint sample, use hardware-compatible pilots and avoid over-driving | Treating generic screw advice as a verified holding-value specification |
| Filled repair | Patch and MDF may absorb coating differently | Feather the repair, prime the entire part and inspect after the first primer coat | Spot-priming that leaves a visible sheen or texture difference |
Production sequence
From CNC sheet to paint-ready part
Confirm the selected sheet, actual thickness, flatness, face condition and dry storage before programming.
Use sharp tooling, stable workholding and dust collection appropriate to the CNC and cutter manufacturer.
Check chatter, fuzzy edges, compressed corners, breakout and fastener locations before coating hides the evidence.
Prepare faces and porous edges according to the primer system; do not assume they need identical treatment.
Run primer and topcoat on a machined offcut and evaluate profile clarity, adhesion, texture and color.
The broader MDF cabinet-material overview explains where MDF fits among panel choices. The Acrylic MDF versus raw MDF comparison covers the finished-panel decision. This workflow starts after raw MDF has already been selected.
CNC setup
Machine a test part before the full nest
Tooling
Match cutter geometry, diameter, flute count, spindle speed, feed and depth of cut to the tool manufacturer’s guidance and your machine. MDF-specific numeric settings should not be copied from an unrelated router.
Workholding
Confirm vacuum coverage, spoilboard condition and part bridges or tabs where required. Small parts can release even when a large sheet appears secure.
Dust
Fine MDF dust demands effective source extraction, housekeeping and personal protection appropriate to the operation. Follow the machine, dust collector and safety-data guidance.
Paint preparation
Build the finish around the most absorbent edge
Machined MDF edges usually absorb more coating than the factory face. A good process is iterative: remove dust, seal or prime, let the coating cure as directed, sand the raised fibers without changing the profile, and recoat until the edge and face have compatible texture.
Keep corners intentional
Very sharp MDF corners are vulnerable. A controlled easing can help coating coverage, but it should be established in the sample rather than improvised after all doors are routed.
Prime every relevant surface
Uneven coating can create different moisture response and appearance. Follow the primer and topcoat system for faces, edges and backs rather than leaving hidden surfaces to chance.
Respect cure windows
Recoat and sanding times belong to the coating manufacturer. “Dry to touch” is not automatically ready for sanding, stacking or installation.
For material context, the why-cabinetmakers-use-MDF reference explains its smoothness and limitations, while the MDF sheet-weight planning chart helps frame handling and logistics. Confirm current product data for the sheet you actually order.
Current matching panel
Unfinished MDF 3/4-inch 4×8 sheet
The current Berta product is listed as raw and unfinished on both faces, nominally 48 × 96 inches and 3/4 inch thick, for dry interior applications. It is a direct fit for CNC-routed and paint-grade parts when the shop controls machining, edge sealing, priming and topcoating.
Before fabrication, verify actual dimensions, sheet condition, coating compatibility and any project-specific certification requirements. Do not use the product-name number as a substitute for a technical data sheet.
Check current unfinished MDF detailsFrequently asked questions
Unfinished MDF questions
Can unfinished MDF be painted without primer?
A compatible primer is normally part of a reliable paint system, especially on porous cut and routed edges. Follow the coating manufacturer’s instructions and prove the entire system on a machined sample.
How do you make routed MDF edges smooth?
Begin with sharp tooling and a clean cut. Remove dust, lightly prepare fuzz or tool marks, seal or prime the edge, allow the coating to cure, sand raised fiber without changing the profile, and recoat as required.
Is this MDF suitable for a bathroom vanity?
The checked product listing states dry interior use. Do not assume suitability for wet or persistently humid exposure. If the project has moisture risk, verify the panel specification and design a complete moisture-management and coating system.
What CNC feed and speed should be used for 3/4-inch MDF?
There is no universal setting. Use the cutter manufacturer’s chip-load guidance, the machine’s limits, workholding, toolpath and dust extraction, then validate the result on a test part before nesting the job.
Does “MDF 800” confirm an 800 kg/m³ density?
Not from the checked Berta listing. It does not publish a density value. Treat MDF 800 as the product designation unless a current technical document explicitly establishes density.
