Quick answer
MDF can be edge-banded successfully, but the edge must be clean, square, dust-free, and matched to the banding and adhesive system. Raw MDF is porous and fibrous at the edge; acrylic- or melamine-faced MDF adds a color-and-sheen matching problem. Use banding slightly wider than the measured panel, follow the adhesive and machine settings supplied for the exact system, apply even pressure, and trim only after the bond has set as required.
Do not treat every roll as iron-on material. Berta Store’s current plastic edge banding is a 1 mm-thick, 7/8-inch-wide, 300-linear-foot roll supplied without adhesive for a glue-applying edgebander.
Why MDF edges need a deliberate plan
The face of MDF is dense and smooth; a sawn edge exposes the fiber structure. That edge can absorb adhesive unevenly if it is fuzzy, dusty, overheated, damaged, or machined with a dull tool. A decorative MDF panel adds another requirement: the finished edge must visually connect the factory face to the cabinet part without a conspicuous color or gloss break.
Start by identifying the substrate. Berta Store’s MDF material overview explains the fiber-based core, the acrylic MDF versus raw MDF comparison separates factory-finished and paint-ready workflows, and the unfinished MDF machining and paint-prep article covers routed edges that will be sealed and painted rather than banded.
Select banding by panel and edge function
| Panel / edge condition | Useful edge direction | Main benefit | Check before production |
|---|---|---|---|
| Acrylic- or melamine-faced MDF | Color- and sheen-matched plastic banding | Factory-finished cabinet appearance and impact protection | Physical sample under project lighting; face film status; corner transition |
| Raw MDF, painted face and edge | Seal, prime, and paint the edge; band only if the design calls for it | Monolithic painted appearance and freedom to route profiles | Edge porosity, primer compatibility, drying, and sanding schedule |
| Raw MDF with contrasting edge | PVC/ABS-style plastic or wood veneer selected as a design feature | Durable exposed edge or intentional contrast | Adhesive suitability for MDF; minimum bend radius; trim quality |
| High-contact shelf or door edge | Thicker impact-resistant banding where the design and machine support it | Better resistance to everyday knocks | Finished dimension, hinge/slide clearances, corner radius |
| Curved MDF part | Banding and equipment specifically capable of the radius | Continuous protected curved edge | Inside/outside radius, heat response, pressure path, end joint |
Banding materials and adhesive families differ. Use the banding supplier’s and adhesive manufacturer’s instructions; do not transfer temperature, feed-speed, or open-time settings from another system.
Band width and thickness: two dimensions with different jobs
Width must cover the measured panel edge and leave enough overhang for reliable trimming. Thickness influences impact resistance, corner appearance, flexibility, and the final part dimension. A nominally 3/4-inch MDF panel should be measured; choosing banding from the nominal label can leave inadequate trim allowance.
For the quantity, use the edge-banding length calculator and include setup parts, test strips, damage, and rework. Browse the current edge-banding collection only after the panel color, sheen, width, and application method are known.

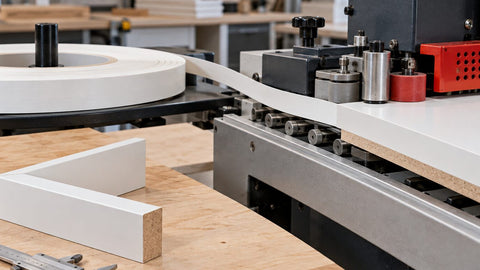

A repeatable machine-application workflow
Cut cleanly
Use sharp tooling and support the part so the edge is square and free of breakout.
Remove dust
Clean the edge and the machine path without polishing, contaminating, or rounding the surface.
Run a test
Use an offcut from the same sheet and the exact banding, adhesive, and settings.
Bond evenly
Maintain the manufacturer-required temperature, adhesive film, feed, and pressure.
Trim and inspect
After the required set time, trim flush; inspect the glue line, corners, color, and pull resistance.
HOMAG’s edge-bander guidance emphasizes even adhesive application and consistent pressure; those are process principles, not Berta-specific machine settings. Always use the instructions for the actual machine and adhesive. If the shop uses hand tools, confirm the material is sold for that method—Berta’s current no-glue roll is explicitly intended for a glue-applying machine, not an iron.
Diagnose the glue line before remaking a full batch
| Symptom | Likely process checks | Corrective direction | Do not assume |
|---|---|---|---|
| Band lifts at the start or end | End pressure, adhesive coverage, cut squareness, contamination | Recheck application and pressure sequence on a test strip | More heat is automatically the answer |
| Visible or irregular glue line | Adhesive film uniformity, pressure, edge waviness, trim setup | Correct the substrate and machine calibration before color judgment | A closer color match will hide poor bonding |
| Band chips during trimming | Cutter sharpness, feed direction, material temperature, overhang | Test tooling and trim allowance on the same material | The roll is defective without checking the cutter |
| Edge telegraphs fibers or dents | MDF edge quality, tool marks, pressure, band thickness | Improve the machined edge and use appropriate band construction | Banding will flatten a damaged edge |
| Color matches but sheen does not | Matte versus gloss variant, protective film, lighting angle | Approve the actual combination in the installed lighting | Matching color name means matching appearance |
| Corner looks bulky | Band thickness, radius tooling, two-edge overlap sequence | Refine the corner detail on a sample assembly | The thickest band always looks most premium |
Related Berta Store materials
Plastic Edge Banding—No Glue
Berta lists this machine-application banding at 1 mm thick, 7/8 inch wide, and 300 linear feet per roll. It is supplied without adhesive in matte and gloss color variants. Verify the selected color, sheen, panel thickness, compatible adhesive, and edgebander setup.
Check edge-banding variants
White Matte Premium Acrylic MDF
The exact white-matte product image is shown here. Berta lists the 4×8 panel at 18 mm nominal with a factory-finished acrylic face on an MDF core. Match banding to the actual panel; confirm whether every visible surface and edge uses the same color and sheen.
Review acrylic MDF finishes
Unfinished MDF 3/4 inch 4×8
Berta’s MDF 800 is a raw, nominal 3/4-inch 4×8 panel for dry interior work. It is a useful substrate when the project needs custom paint or machining. If the edge will be painted instead of banded, seal and prime the porous edge as part of the finish schedule.
Check unfinished MDF specificationsFor broader planning, compare the MDF panel collection, estimate sheet quantity with the panel calculator, and evaluate full-sheet logistics with the delivery calculator.
Five avoidable MDF edge-banding mistakes
- Banding a dusty edge. Dust between substrate, adhesive, and band creates an unreliable interface.
- Setting up from nominal thickness. Measure the panel and confirm the required trim allowance.
- Assuming every roll is preglued. Application method is a product specification.
- Matching by screen color. Displays, photography, lighting, and gloss alter perceived color; approve a physical sample.
- Skipping the assembled-corner sample. A straight test edge does not reveal the final corner radius, overlap, or sheen transition.
Berta’s general panel edge-banding article explains the broader purpose of covering sheet edges, while the glossy edge-banding color-matching article focuses on high-gloss decorative surfaces. The MDF-specific process here adds substrate preparation, application-method checks, and raw-versus-factory-finished decisions.
MDF edge-banding FAQ
Can you put edge banding directly on MDF?
Yes, provided the banding and adhesive system are suitable for MDF and the edge is sound, square, clean, and tested. A fuzzy or contaminated edge should be corrected before bonding.
What width edge banding fits 3/4-inch MDF?
Choose from the measured panel thickness plus the top and bottom trim allowance required by the process. Berta’s current roll is nominally 7/8 inch (about 22 mm) wide, but suitability depends on the actual sheet and edgebander.
Can Berta’s no-glue edge banding be ironed on?
No. The current product is supplied without adhesive and is intended for machine application with a compatible glue-applying edgebander.
Should edge banding be matte or gloss?
Match the intended design and the actual face. A white matte panel usually needs a white matte edge for a continuous look; a deliberate contrast is possible, but approve it on a physical sample.
Should raw MDF edges be banded or painted?
Either can work. Flat square edges may be banded for protection or design; routed profiles are usually sealed, primed, and painted. The decision should follow the shape, exposure, finish system, and production equipment.
Does thicker edge banding always last longer?
Thickness can improve impact resistance, but it also changes flexibility, corner treatment, and finished dimensions. The bond, substrate preparation, and correct machine process remain essential.
Build the edge as a tested system
The reliable sequence is simple: identify the MDF surface, measure the real panel, select and physically match the band, prepare a clean edge, follow the adhesive and machine requirements, then approve the bond and appearance on a same-sheet offcut. That short test is far cheaper than diagnosing finished cabinet parts.
Technical scope: General edge-bander process principles were checked against HOMAG’s EDGETEQ pressure and adhesive guidance. Berta-specific dimensions, application method, colors, surfaces, and images were checked against the live product records on October 13, 2026. No universal temperature, feed, pressure, or adhesive setting is stated because those values belong to the exact machine and adhesive system.
