Quick answer

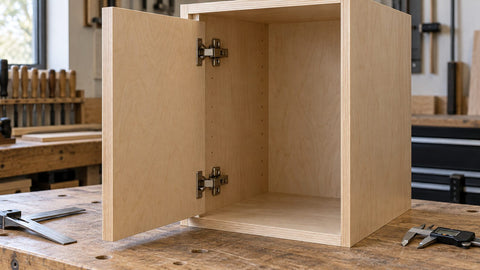

An inset cabinet door closes inside the cabinet opening, so the hinge must be designed for inset geometry and the finished door must leave a controlled reveal on all four sides. Do not choose an inset hinge only because the cup looks similar to an overlay hinge. Confirm cabinet construction, door position, door thickness, cup diameter and depth, mounting-plate pattern, opening angle, and adjustment range as one system.
Berta’s current 110° inset hinge is specifically listed for inset doors on frameless cabinets. Its product-specific data lists a 35 mm cup, 12 mm cup depth, 16–24 mm door thickness, 45 mm cup screw-hole spacing, a 35 mm mounting-plate screw center, clip-on mounting, soft close, and six-way adjustment. Those dimensions describe that model; they are not universal inset-hinge standards.
Inset vs overlay: the geometry that matters
Inset door
The door face is generally flush with or set inside the cabinet front plane. A visible reveal surrounds the door, and the door edge must clear the opening as it swings.
Overlay door
The closed door covers part or all of the cabinet side or face frame. Overlay amount, not an all-around inset reveal, controls the front relationship.
For the broad vocabulary, review Berta’s cabinet hinge types for overlay, inset, and concealed doors. If you are replacing an existing hinge, the hinge overlay measurement guide helps separate door position from cup and plate measurements.
Compatibility checklist before ordering
| Check | Why it matters | What to measure or verify | Berta 110° inset model |
|---|---|---|---|
| Cabinet construction | Face-frame and frameless cabinets present different mounting surfaces and offsets. | Confirm whether the plate mounts to a frameless cabinet side or to a face-frame solution. | Listed for frameless cabinets. |
| Closed door position | Inset, half overlay, and full overlay require different hinge geometry. | Verify the door closes within the opening, with a planned reveal. | Listed for inset doors. |
| Door thickness | Cup boring and swing clearance can conflict with thin or unusually thick doors. | Measure the finished door, including coating or applied face material. | Listed range: 16–24 mm. |
| Cup boring | The diameter and depth must fit without breaking through the face. | Check cup diameter, depth, and edge setback from the actual installation sheet or test bore. | 35 mm cup; 12 mm cup depth. |
| Screw pattern | Replacement holes may not align even when the cup fits. | Measure center-to-center spacing and hole condition. | 45 mm cup screw-hole spacing; 35 mm plate screw center. |
| Opening and adjacent parts | A door can strike a wall, filler, pull, neighboring door, or interior pull-out. | Test the full swing and interior hardware path. | 110° listed opening angle. |
| Adjustment and mounting | Inset reveals need repeatable fine alignment. | Confirm adjustment directions, plate height, and attachment method. | Six-way adjustment; clip-on mounting plate. |
All values in the last column are product-specific. Do not apply them to a different hinge simply because it uses a 35 mm cup.
Plan the reveal before boring cups
An inset reveal is the deliberate gap between the door and the cabinet opening. It accommodates manufacturing tolerance, finish buildup, seasonal movement in wood components, and adjustment. The correct reveal is a design and fabrication decision—not a universal number supplied by the hinge name.
Check the opening for square
Measure both diagonals and compare the opening at the top, middle, and bottom. A perfect door cannot create an even reveal inside a racked opening.
Measure the finished door
Paint, veneer, edge banding, or applied trim can change the size and thickness. Use finished or process-adjusted dimensions.
Reserve adjustment travel
Do not build the sample at the end of the hinge’s adjustment range. Center the mechanism where possible so final alignment can move in both directions.
Berta’s cabinet hinge adjustment diagram explains the common side, depth, and height corrections. Adjustment refines a compatible installation; it cannot convert an overlay hinge into an inset hinge or fix an undersized cup depth.
Installation sequence for a controlled first door
Confirm the exact model
Match the packaging, product page, and physical hinge. Record every model-specific boring and plate dimension before drilling.
Make a boring sample
Use scrap matching the finished door thickness. Bore the cup, check remaining face thickness, and install the cup screws without over-tightening.
Mount one door
Attach both plates, clip on the door, adjust the reveal, and cycle the door slowly through the full opening.
Test conflicts
Check neighboring fronts, fillers, pulls, shelves, drawer fronts, and pull-outs. Confirm the soft-close action begins and completes cleanly.
Lock the jig
Only after the sample passes should you standardize cup and plate positions for the remaining doors.
Recheck after finishing
Final coating and installation can shift reveals. Make small, balanced adjustments instead of forcing the door against the opening.
Product-specific inset hinge option
Berta 110° inset soft-close hinges for frameless cabinets
The current listing specifies a 20-hinge pack with installation screws, built-in soft-close damping, six-way adjustment, and clip-on mounting plates. Listed fit data includes a 35 mm cup, 12 mm cup depth, 16–24 mm door thickness, 45 mm cup screw-hole spacing, and 35 mm plate screw center.
Check before buying: verify that the cabinet is frameless, the door is truly inset, and the exact cup, plate, and clearance measurements match your door and cabinet. For replacements, inspect the old bore pattern and screw-hole condition.
Review the exact 110° inset hinge specificationUse the overlay and inset hinge collection to compare door-position families, the cabinet hinge collection for the full category, and the cabinet hardware collection when coordinating other mechanisms. Face-frame projects should be checked against the separate face-frame hinge collection.
Troubleshooting an inset door
| Symptom | Likely check | Corrective direction |
|---|---|---|
| Reveal is tight on one side | Opening square, door size, side adjustment, plate position | Confirm geometry first; then use small side adjustments across both hinges. |
| Top reveal differs from bottom | Door or opening out of square; unequal hinge adjustment | Compare diagonals and door corners before using adjustment to hide fabrication error. |
| Door rubs while opening | Hinge type, cup setback, door edge profile, reveal, adjacent cabinet | Stop cycling under force; verify the model-specific boring plan and swing path. |
| Door sits proud of cabinet front | Depth adjustment, plate seating, obstruction behind arm | Make controlled depth corrections; confirm the plate is flat and the hinge is fully clipped on. |
| Soft close does not finish | Door alignment, damper obstruction, hinge count and model condition | Remove rubbing first; then test each hinge and follow the product instructions. |
| Screw will not hold | Damaged hole, wrong pilot, weak substrate, over-tightening | Repair the substrate appropriately and verify fastener size; do not rely on adjustment screws to compensate. |
If a door must be protected from a nearby wall or pull, evaluate a model-compatible angle limiter rather than improvising a stop. Berta’s hinge restrictor compatibility guide explains why clips are not universal across hinge families.
Frequently asked questions
What is a full inset cabinet hinge?
It is a hinge intended for a door that closes within the cabinet or face-frame opening rather than covering the front edge. “Full inset” describes the closed door position, not one universal cup or plate dimension.
Can I use an overlay hinge on an inset door?
Do not assume so. The hinge arm and mounting geometry establish the closed position. Choose a hinge explicitly specified for the cabinet construction and inset door application.
Are all inset hinges for face-frame cabinets?
No. Inset describes door position; face-frame and frameless describe cabinet construction. Berta’s current 110° inset model is listed for frameless cabinets.
Is a 35 mm cup enough to prove compatibility?
No. Cup diameter is only one input. Cup depth, setback, screw spacing, door thickness, plate pattern, hinge arm, opening angle, and cabinet construction must also match.
How many hinges should an inset door use?
Hinge count depends on the exact hinge manufacturer’s guidance, door height, width, weight, material, and use. The Berta product page does not establish a universal door-size-to-hinge-count chart, so confirm the installation guidance for the actual project.
Bottom line
Inset hinge selection begins with the cabinet and door geometry. Establish the reveal, confirm frameless versus face-frame construction, match the exact model’s boring and plate data, and prove the setup on one sample door. Fine adjustment should be the last step, not a substitute for compatibility.
Technical scope: Product-specific measurements were checked against the current Berta 110° inset hinge listing. They apply only to that model unless another product’s documentation states the same values. No conflicting Berta installation guide was found in the sources available during drafting.
