Quick answer

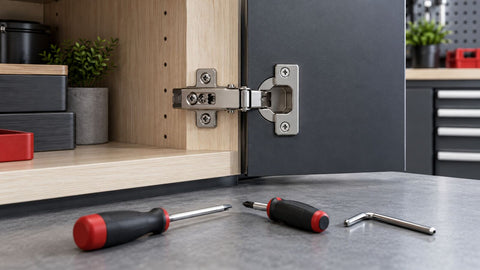

A 3D cabinet hinge provides adjustment in three directions: side-to-side, up-and-down, and in-and-out. Those axes help align a compatible door after the cup and mounting plate are installed. “3D” does not define the cabinet construction, door overlay, cup dimensions, opening angle, soft-close feature or load capacity.
Choose the hinge for the cabinet and door first. Use 3D adjustment to refine reveals, depth and height—not to compensate for a wrong hinge application or inaccurate boring.
The three adjustment axes
Side-to-side
Moves the door laterally to change the reveal between doors or between a door and cabinet edge. This is often the first visible gap correction.
Up-and-down
Raises or lowers the door to align top and bottom edges. The exact control may be a cam, screw or plate slot, depending on the model.
In-and-out
Changes how deeply the door sits relative to the cabinet front. It can help create an even plane and prevent rubbing when the geometry is otherwise correct.
What “3D” does not tell you
| Specification | Does 3D define it? | Why it matters | What to verify |
|---|---|---|---|
| Cabinet construction | No | Face-frame and frameless boxes use different mounting geometry | The exact application named by the product |
| Door overlay or inset | No | It controls how the closed door covers or sits within the opening | Measured overlay and the matching hinge variant |
| Cup and boring | No | Diameter, depth and hole spacing determine whether the door can accept the hinge | Exact technical drawing and the existing bore |
| Opening angle | No | The swing must clear walls, pulls, appliances and adjacent doors | Listed angle plus a real clearance check |
| Soft close | No | Damping is a separate mechanism from alignment | Whether the exact hinge includes an active damper |
| Door capacity | No | Door size, weight and hinge count affect performance | The manufacturer’s limits for that model |
| Adjustment range | No | “Three directions” does not state how far each direction moves | The exact model’s published adjustment values |
Choose the hinge in the right order
A current Berta 3D hinge example
This example is useful because the listing states the application and features together. The specifications below belong only to this current product.
Full-overlay 110° soft-close 3D hinge
- Listed for full-overlay frameless cabinet doors
- 110° listed opening angle
- Clip-on installation
- 3D vertical, horizontal and depth adjustment
- Soft-close mechanism
- Steel with a nickel-plated finish
- Current package listing: 20 hinges with installation screws
What to check: full-overlay frameless application, cup and mounting pattern, door geometry, hinge count and clearance. The listing does not make these dimensions universal for other 3D hinges.
Review the exact 110° 3D hinge listingAdjust one axis at a time
Start with mechanically sound installation. The cup must seat correctly, the mounting plate must be square and secure, and the door must be supported. If the base installation shifts, an adjustment reading will not stay meaningful.
- Mark the current screw positions with a pencil.
- Make a small change on one axis.
- Close the door gently and check the full reveal.
- Coordinate upper and lower hinges; avoid twisting the door.
- Recheck the swing and soft-close engagement after alignment.
- Stop if the adjustment reaches its limit. Reinspect fit and installation instead of forcing the screw.
Berta’s 3D screw-by-screw cabinet hinge adjustment diagram is the appropriate next reference once a compatible hinge is installed.
Know when adjustment is not the repair
| Problem | Adjustment may help when… | Adjustment will not fix… | Inspect next |
|---|---|---|---|
| Uneven gap | The hinge is compatible and mounted securely | A wrong overlay hinge or badly misplaced cup | Overlay, bore location, plate position |
| Door sits proud | Depth is within the model’s intended range | An obstruction, wrong plate or cup that is not seated | Cabinet interior, cup, plate and door thickness |
| Door sags | Fasteners are tight and the door load is supported | Loose substrate, too few hinges or an overloaded hinge | Screw holes, hinge count and door weight |
| Door rubs while opening | Minor depth or side alignment causes contact | An incompatible opening path or neighboring hardware collision | Angle, projection, pull and adjacent door |
| Soft close is inconsistent | The door is misaligned and misses the damper zone | A damaged damper or wrong hinge for the application | Alignment, mechanism and exact model |
| Adjustment will not hold | A screw was simply not tightened to specification | Stripped holes, cracked material or a loose mounting plate | Substrate and fastener condition |
3D cabinet hinge questions
Is a 3D hinge the same as a six-way adjustable hinge?
The terms are sometimes used together, but wording varies. “3D” normally means adjustment on three axes; “six-way” may describe positive and negative movement on each axis. Confirm the exact product’s controls and range.
Does every European hinge have 3D adjustment?
No. Concealed European-style hinges use several adjustment and mounting designs. Verify the exact hinge and plate rather than inferring features from the general style.
Can 3D adjustment change a half-overlay hinge into a full-overlay hinge?
No. Adjustment fine-tunes the intended geometry. The hinge application and overlay must already match the door and cabinet.
Which screw should I turn first?
Identify the model-specific controls first. In a compatible installation, establish height, set side gaps, then refine depth, checking the entire door after each small change.
Why does the door move in two ways when I adjust one screw?
Hinge geometry and door leverage can make one change affect another visible gap. Upper and lower hinges also interact. Use small changes and recheck all reveals rather than chasing one corner.
Is 110° a universal opening angle for 3D hinges?
No. The current Berta example is listed at 110°, but 3D adjustment does not define opening angle. Check the exact model and the real collision path.
Treat 3D adjustment as the final fit tool
A 3D hinge is valuable because it makes precise alignment practical after installation. The feature works best when the cabinet construction, overlay, cup, plate, opening angle and door load were selected correctly first.
For broader selection, use Berta’s European hinge cup, plate and overlay reference and cabinet hinge types reference. Compare full-overlay and half-overlay applications, review the soft-close versus standard hinge comparison, use the hinge quantity calculator for early planning, and confirm terminology in the hinges FAQ.
