Quick answer
A European cabinet hinge is a concealed system made of a door-side cup and hinge arm that connects to a cabinet-side mounting plate. Choosing one requires more than matching the 35 mm cup used by many common models. You must also match cabinet construction, door position, overlay, plate style, opening angle, closing action and drilling pattern.
Start with the closed-door geometry: frameless or face-frame cabinet, then full overlay, half overlay or inset door. Only after that should you compare soft-close, clip-on removal, adjustment range and opening angle.
The five parts of a European hinge decision
| Decision | What it controls | What to inspect or measure | Common mistake |
|---|---|---|---|
| Cabinet construction | Where the mounting plate attaches | Frameless cabinet side or face-frame member; available fastening surface | Buying a frameless application hinge for a face-frame layout without a compatible plate or adapter |
| Door position | Whether the door covers or sits inside the opening | Full overlay, shared-partition half overlay, or inset relationship | Using “overlay” as a synonym for every concealed hinge |
| Cup and drilling | Door-side fit and edge clearance | Cup diameter, cup depth, screw or dowel pattern, bore distance and door thickness allowed by the model | Copying a generic 35 mm template without checking depth or setback |
| Plate and arm | Final overlay, gap and adjustment range | Plate height, arm crank, attachment method and manufacturer compatibility | Mixing visually similar parts from different systems |
| Motion | Opening clearance and closing feel | Opening angle, soft-close or spring close, nearby fillers, pull-outs and wall clearance | Assuming a wider opening angle always clears adjacent construction |

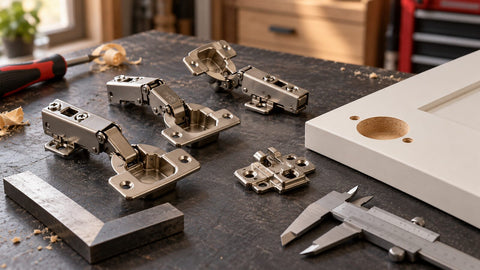

Cup, arm and mounting plate: what each part does
Replacement rule: Record every marking, photograph the installed hinge and plate, and measure the door position before ordering. Cup diameter alone is not a compatibility test.
Choose by door position before features
A full-overlay door covers most of the cabinet side or partition edge. A half-overlay application commonly lets two doors share one partition, with each covering only part of it. An inset door closes within the opening and requires a controlled reveal around the perimeter.
Berta’s cabinet hinge overlay-size reference explains the measurement language. If you are unsure whether the cabinet is framed, use the face-frame versus frameless hinge comparison. For a broad visual map, start with the cabinet hinge styles overview.
Inset work deserves its own tolerance check because the reveal is visible on every side. The inset hinge fit and installation article covers that workflow in more detail.
A practical hinge-selection workflow
Do one test door before batch drilling. Mount the plate, attach the hinge, close the door slowly, and inspect reveal, overlay, binding and clearance. Adjustment is for fine alignment; it is not a substitute for the wrong hinge geometry.
Examples of distinct European-hinge applications
105° full-overlay frameless hingesA 20-piece, screw-included set for full-overlay frameless doors. This model uses spring self-closing action rather than soft-close damping and offers two-cam adjustment.
Check the 105° model
110° soft-close full-overlay hingesA 20-piece, screw-included frameless set with clip-on connection, integrated soft-close action and three-dimensional adjustment. Use its model-specific drilling information.
Review the soft-close model
110° inset cabinet-door hingesA 20-piece soft-close, clip-on set for inset frameless applications. Berta lists a 35 mm cup and 12 mm cup depth for this model; confirm door thickness and drilling before machining.
Check the inset model
Product specifications were checked against current Berta product records at draft time. Confirm the current page, installation material and selected application before ordering or drilling.
Common fitting errors
- Matching only the cup diameter and ignoring arm crank or plate height.
- Confusing full overlay with half overlay on a shared partition.
- Drilling every door before testing one complete hinge-and-plate assembly.
- Assuming soft-close and self-close describe the same mechanism.
- Using adjustment screws to compensate for a misplaced cup hole.
- Ignoring wall, filler, pull-out and neighboring-door clearance at the chosen opening angle.
- Combining unverified hinge arms and plates because they look similar.
Plan the complete hinge system
Frequently asked questions
Are all European cabinet hinges interchangeable?
No. A shared cup diameter does not guarantee the same cup depth, drilling pattern, plate connection, arm geometry, overlay, opening angle or adjustment range. Match the complete system or verify a manufacturer-approved substitution.
Do European hinges always use a 35 mm cup?
Many common cabinet models do, but not every concealed hinge does. Even among 35 mm models, depth, bore distance and fastening pattern differ. Use the exact model drawing.
Can I use a frameless hinge on a face-frame cabinet?
Sometimes a compatible face-frame plate or adapter creates a valid system, but that is model-specific. Do not assume the cabinet-side screw pattern or overlay will work without the designated hardware.
What is the difference between soft-close and self-close?
Self-closing spring action pulls the door toward the closed position. Soft-close adds damping to slow the final movement. A hinge may be self-closing without being soft-close.
How many concealed hinges does a cabinet door need?
Door height, width, weight, material and hinge capacity all matter. Follow the selected hinge manufacturer’s chart and use Berta’s hinge quantity calculator only as a planning aid.
Sources and scope
System anatomy and the instruction to use model-specific planning data are consistent with current concealed-hinge documentation from Blum’s official hinge downloads. Dimensions and compatibility shown for Berta models come only from the current Berta product records cited above. Another manufacturer’s drilling pattern or certification must not be assigned to a Berta hinge. Project-specific manufacturer instructions override this general selection guide.
