Quick answer

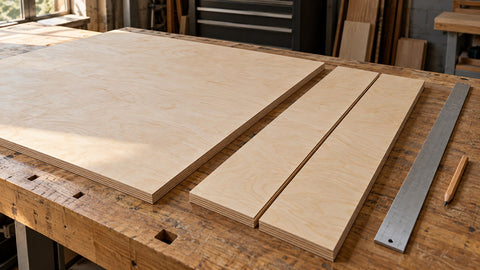

Two finished 24-inch-wide pieces do not fit across a sheet that measures exactly 48 inches wide when a saw cut separates them. The blade removes a strip of material called the kerf. With a 1/8-inch kerf, those two pieces require 48 1/8 inches before any edge trimming.
Start with the measured sheet, subtract edge cleanup, then reserve the kerf between parts. Keep face-grain direction and finished edging dimensions in the same plan.
The missing 1/8 inch
A 4×8 sheet is often treated as two 2×8 halves. That is a useful rough description, but it is not a cutting promise. If the stock is exactly 48 inches wide and you cut off one finished 24-inch strip, a 1/8-inch kerf leaves a second strip only 23 7/8 inches wide.
24 + 1/8 + 24 = 48 1/8 inches
Splitting the loss evenly gives two 23 15/16-inch strips. Neither is a finished 24-inch part. A thinner blade reduces the loss; it does not make that loss disappear.
| Cutting goal | With a 1/8-inch kerf | Result from exactly 48 inches |
|---|---|---|
| Two 24-inch strips | 24 + 1/8 + 24 = 48 1/8 in | Does not fit |
| One 24-inch strip plus remainder | 48 − 24 − 1/8 = 23 7/8 in | One full-width part; one narrower remainder |
| Two equal strips | (48 − 1/8) ÷ 2 = 23 15/16 in | Fits, but both parts are under 24 inches |
| Two 23 3/4-inch strips | 23 3/4 + 1/8 + 23 3/4 = 47 5/8 in | Geometric allowance remains; plan the actual separating and cleanup cuts |
Edge trimming uses a different allowance
Kerf accounts for the material removed by a cut. Edge trim is the material you intentionally remove to obtain a clean, square reference edge. Do not enter the same loss twice.
In this example, a 1/4-inch edge allowance means the total inward reduction at each sheet edge, including the cut used to establish that edge. After trimming both sides, the usable width is 47 1/2 inches. Two equal strips separated by a 1/8-inch cut can then be no wider than 23 11/16 inches each.
Equal strip width = (47 1/2 − 1/8) ÷ 2 = 23 11/16 in
| Allowance | What it covers | How to enter it |
|---|---|---|
| Sheet-edge cleanup | Squaring, damaged edges or an intentional perimeter margin | Reduce usable width and length by the relevant edge losses |
| Saw kerf | The actual slot left by your blade and setup | Reserve at each required cut; do not add it to the finished part size |
| Final sizing allowance | Extra stock for a later trimming pass | Make the rough blank larger than the finished component |
| Applied edging | Material added after cutting | Work backward from the final external dimension |
| Spare parts | Replacement pieces with specific sizes and grain | Add those pieces explicitly, rather than relying only on a waste percentage |
A four-part 4×8 layout that can actually fit
Suppose the job calls for four 23 1/2 × 47 1/2-inch rectangular blanks, all with their 47 1/2-inch dimension along the sheet’s long grain. These are layout examples, not a cabinet design or a load-rated shelf specification.
Start with an exactly 48 × 96-inch sheet, remove a total 1/4 inch at each edge, and use a measured 1/8-inch kerf. The usable rectangle is 47 1/2 × 95 1/2 inches.
| Axis | Parts + internal separation | Available after trim | Room remaining before cleanup cuts |
|---|---|---|---|
| Width | 23 1/2 + 1/8 + 23 1/2 = 47 1/8 in | 47 1/2 in | 3/8 in |
| Length | 47 1/2 + 1/8 + 47 1/2 = 95 1/8 in | 95 1/2 in | 3/8 in |
For a simple cut sequence, establish the clean reference edges, rip the two 23 1/2-inch strips, then crosscut each strip into two 47 1/2-inch blanks. Maintain support as the sheet becomes smaller. Recheck the remaining material before each repeated cut.
The four finished blanks total about 31.01 square feet, or 96.90% of the original 32-square-foot sheet. That percentage describes this geometry only; it is not a general plywood-yield target and does not account for unacceptable face defects.
Grain, thickness and edging can change the answer
Rotating a rectangle may improve a drawing while making the finished part wrong. A visible door, side panel or matched pair may need a specific grain direction. Structural orientation is a separate design question: do not rotate a load-bearing part solely to save sheet area.
Check the plywood sheet-size guide before assuming every “4×8” panel has identical measured dimensions. For joints, use the nominal-to-actual plywood thickness chart and measure the delivered stock.
Applied edging also changes external size. If a finished part must be 600 mm wide and receives 1 mm banding on both width edges, the core begins at 598 mm before any shop-specific trimming allowance. Confirm the final band thickness and trimming process on a sample. The edge-banding quantity calculator helps estimate length once those edges are defined.
For a cabinet assembly, settle outside dimensions and joint allowances with the cabinet box estimator before converting them to a cut list. If you need a complete furniture example, the Baltic Birch furniture plans and cut lists provide separate component and layout drawings.
Choose the sheet after checking the layout
Use the cabinet-grade plywood collection to compare constructions and finishes. The Baltic Birch collection is a separate material route for unfinished multi-ply panels; choosing it still requires a fresh size, grade and grain check.
3/4-inch-class UV-prefinished Birch
For cabinet interiors designed to retain a clear birch surface. The selected option is listed as 18 mm over a multi-ply poplar core, with both faces finished.
The exact current 3/4-inch product image is shown. Verify the usable sheet dimensions and grain direction before applying the layout. This example does not establish a cabinet depth, joint detail or shelf capacity.
Review prefinished Birch specificationsEnter the approved part dimensions in the plywood cut-list calculator as a planning aid. Inspect the resulting estimate against your own cutting sequence; do not assume any calculator guarantees the fewest sheets or a machine-ready program.
Questions from the workbench
Can a thin-kerf blade produce two exact 24-inch parts?
Not across stock that is exactly 48 inches wide. Any positive kerf makes 24 + kerf + 24 greater than 48. Oversized stock may change the calculation after measuring and allowing for cleanup.
Should I add kerf to every part dimension?
Keep the part dimensions at the intended cut size. Reserve blade loss in the layout between parts and at cuts that separate parts from residual stock. A rough-sizing allowance is a different input.
Is 10% waste enough?
A percentage cannot guarantee that a particular replacement panel fits. Add named spare parts, grain requirements and any defect zones to the layout. Use a percentage only for the extra material risk it is intended to cover.
Can the same layout be used with MDF?
The dimensional calculation can be reused if the actual sheet dimensions, thickness, kerf and component sizes match. Surface direction, material performance and handling requirements still need their own checks.
Check the cut before committing the sheets
- Measure the sheet and the kerf from a representative test cut.
- Separate edge trim, rough sizing, applied edging and spare parts.
- Lock the required grain and show-face orientation.
- Check width and length with every separating cut included.
- Make the first parts, measure them, then repeat the approved sequence.
Source and scope: the arithmetic and four-part arrangement are original planning examples. Berta’s plywood FAQ covers material questions. The APA panel-layout guidance supports measuring saw-cut width and allowing for kerf; it is not a certification of this layout or any Berta product.
