Quick answer: Use overlay hinges for most cabinet doors, inset hinges for flush designs, and concealed hinges for modern adjustable installations.
Most hinge problems in kitchens are not “bad hardware.” They come from choosing the wrong hinge type for the door style (overlay vs inset), cabinet construction (face-frame vs frameless), and door weight. The result is misalignment, door rub, uneven gaps, or hinges that fail early.
This page is a practical selection guide. It explains the hinge types that actually show up in cabinet work, what they’re used for, what to avoid, and how to match hinge specs to door construction without guessing.
What Cabinet Hinge “Type” Actually Means
In cabinet work, “hinge type” is not just style. It’s the combination of (1) how the door sits relative to the cabinet, (2) whether the hinge is visible, and (3) what adjustments and closing features are built in. If you choose a hinge that doesn’t match the door overlay or cabinet construction, the door may never align correctly—even if the hinge itself is high quality.
Three specs determine 90% of hinge selection
- Door position: overlay, half overlay, or inset
- Cabinet construction: face-frame or frameless
- Opening angle + clearance: how far the door must open without hitting pulls, walls, or appliances
Cabinet Construction Basics: Face-Frame vs Frameless
Face-frame cabinets
Face-frame cabinets have a frame on the front of the box. Hinges mount to the frame (or with a plate) and door overlay is measured relative to that frame. Many U.S. kitchens are face-frame.
Frameless cabinets
Frameless cabinets (often called “European-style cabinets”) have no front frame. Hinges mount directly to the cabinet side panels. This construction commonly uses concealed European hinges because they handle adjustability and consistent door gaps well.
Hinge Types That Matter in Kitchen Cabinet Work

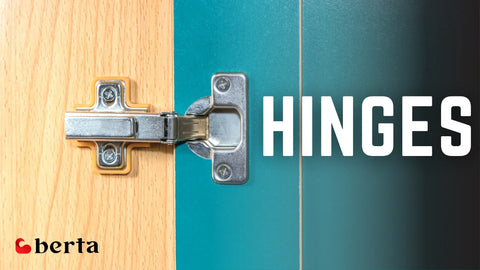

Concealed (European) hinges
These are the most common hinges in modern kitchens. They sit inside the cabinet, so you don’t see the hinge when the door is closed. The main advantage is adjustability: you can correct minor cabinet or wall inconsistencies without rebuilding doors.
- Use when: you need clean fronts, consistent reveals, and adjustability (common in kitchens)
- Avoid when: you want a visible traditional hinge, or the cabinet/door design doesn’t allow a cup bore
Overlay hinges (door covers the frame)
Overlay hinges are selected based on how much the door covers the cabinet frame. “Overlay” is about the door position, not a single hinge model. Most kitchens use full overlay or partial overlay doors.
- Use when: the door sits on top of the cabinet face/frame (most standard doors)
- Avoid when: the door is inset or the hinge geometry won’t clear adjacent doors/pulls
Inset hinges (door sits flush inside the frame)
Inset doors require tighter tolerances. The hinge must allow the door to swing without binding, and the install must maintain a consistent gap all around. Inset looks clean and traditional, but it’s less forgiving.
- Use when: the design requires an inset door and you can control door sizing and alignment
- Avoid when: the site has movement, uneven cabinets, or you want fast, forgiving installs
Soft-close hinges (feature, not a hinge “style”)
Soft-close is a damping feature added to a hinge system. It prevents slamming and reduces stress on doors and cabinet boxes. It’s useful, but not automatic—overspec’ing soft-close can create bounce-back or slow closing on light doors if the damper is too aggressive.
- Use when: kitchens with frequent use, heavier doors, families, rental durability concerns
- Avoid when: very light doors that don’t have enough momentum, or when the closing action becomes inconsistent
Self-closing hinges
Self-closing hinges pull the door shut near the end of travel, typically using a spring. They are not the same as soft-close. Self-closing can still slam if there’s no damper.
- Use when: you want doors to reliably stay closed without damped motion
- Avoid when: noise control matters or the project requires soft closing action
Cabinet Hinge Comparison Table
This table is designed for selection—not theory. Start here, then confirm overlay, opening angle, and mounting method.
| Hinge Type | Visible When Closed | Best For | Common Mistake |
|---|---|---|---|
| Concealed (European) | No | Most modern kitchen cabinets, clean reveals, adjustability | Wrong overlay/mounting plate causing misalignment |
| Overlay (full/partial) | Depends on model | Face-frame cabinets and standard kitchen door layouts | Choosing full overlay hinge for a partial overlay door (or vice versa) |
| Inset | Often yes (traditional) or no (concealed inset) | Flush inset doors, classic cabinet styles | Not leaving correct gaps; door binds as wood moves |
| Soft-close (feature) | No (usually concealed) | Noise reduction, door protection, high-use kitchens | Using too much damping on light doors (bounce-back / slow close) |
| Self-closing (feature) | Depends on hinge style | Keeping doors shut without damping | Assuming self-close = soft-close (it can still slam) |
How to Choose the Right Hinge for Your Door
Step 1: Identify the door overlay
- Full overlay: door covers most or all of the frame edge
- Half overlay: two doors share a center stile, each covers part of it
- Inset: door sits inside the frame opening
Step 2: Confirm cabinet construction
- Face-frame: needs hinge style/plate that mounts to frame
- Frameless: hinges mount to cabinet side; concealed hinges are standard
Step 3: Decide opening angle based on clearance
Standard kitchen use often works with common opening angles, but corners, pull-outs, and appliance proximity can require wider opening hinges. If the door must open wide to access trays or pull-outs, specify that first—then select hinge model.
Common Hinge Problems and What Actually Causes Them
Doors won’t align evenly
Usually caused by the wrong overlay specification, incorrect mounting plate, or hinges installed at inconsistent setback distances. Concealed hinges help because they allow three-direction adjustment, but only if the hinge/plate pairing matches the door overlay.
Door rubs or binds
Common with inset doors when the gap is too tight or the cabinet is not square. Seasonal movement can make the problem worse. This is why inset is a deliberate choice, not a default.
Soft-close feels inconsistent
Often caused by door weight not matching damper strength, or too many dampers per door. Some systems need only one damper engaged to avoid bounce-back.
Soft-Close vs Standard Hinges (Detailed Comparison)
If your main decision is whether soft-close is worth it for your project, we published a focused comparison that breaks down when soft-close makes sense and when standard hinges are the better fit: soft close hinges vs standard cabinet hinges.
Related Cabinet Hardware and Selection References
For buyers working through full cabinet hardware selection (hinges, drawer slides, and matching specs), it helps to keep material choices and hardware loads aligned. When we stock hinges for cabinet applications, the priority is consistent adjustment, predictable closing behavior, and compatibility with common cabinet constructions—not just appearance.
Browse hardware categories here: cabinet hinges for kitchen cabinets. If you’re pairing hinge selection with drawer hardware choices, reference: drawer slides for cabinets.
FAQ
What hinge type is most common for kitchen cabinets?
Concealed European hinges are the most common for modern kitchens because they’re adjustable, clean-looking, and work across overlay types.
What’s the difference between overlay and inset hinges?
Overlay doors sit on top of the cabinet face/frame, while inset doors sit flush inside the frame opening. Inset requires tighter tolerances and is less forgiving if the cabinet is out of square.
Is soft-close always better?
No. Soft-close helps in high-use kitchens and with heavier doors, but it can feel slow or inconsistent on light doors if the damping is too strong or over-applied.
Can I use the same concealed hinge on face-frame and frameless cabinets?
Sometimes, but the mounting plates and installation method differ. The hinge system must match cabinet construction and overlay to align correctly.
Why do my cabinet doors not close evenly?
The most common causes are incorrect overlay spec, the wrong mounting plate, inconsistent hinge placement, or a cabinet box that is not square.
Final Thoughts
Cabinet hinges are simple parts with non-simple consequences. The right hinge is the one that matches door overlay, cabinet construction, and required clearance—not the one that sounds like an upgrade. If you identify those three inputs first, hinge selection becomes straightforward, installs go faster, and doors stay aligned longer.
