105° Soft Close Cabinet Hinges – 5/8" Overlay for Face Frame & Frameless Cabinets - Berta Store

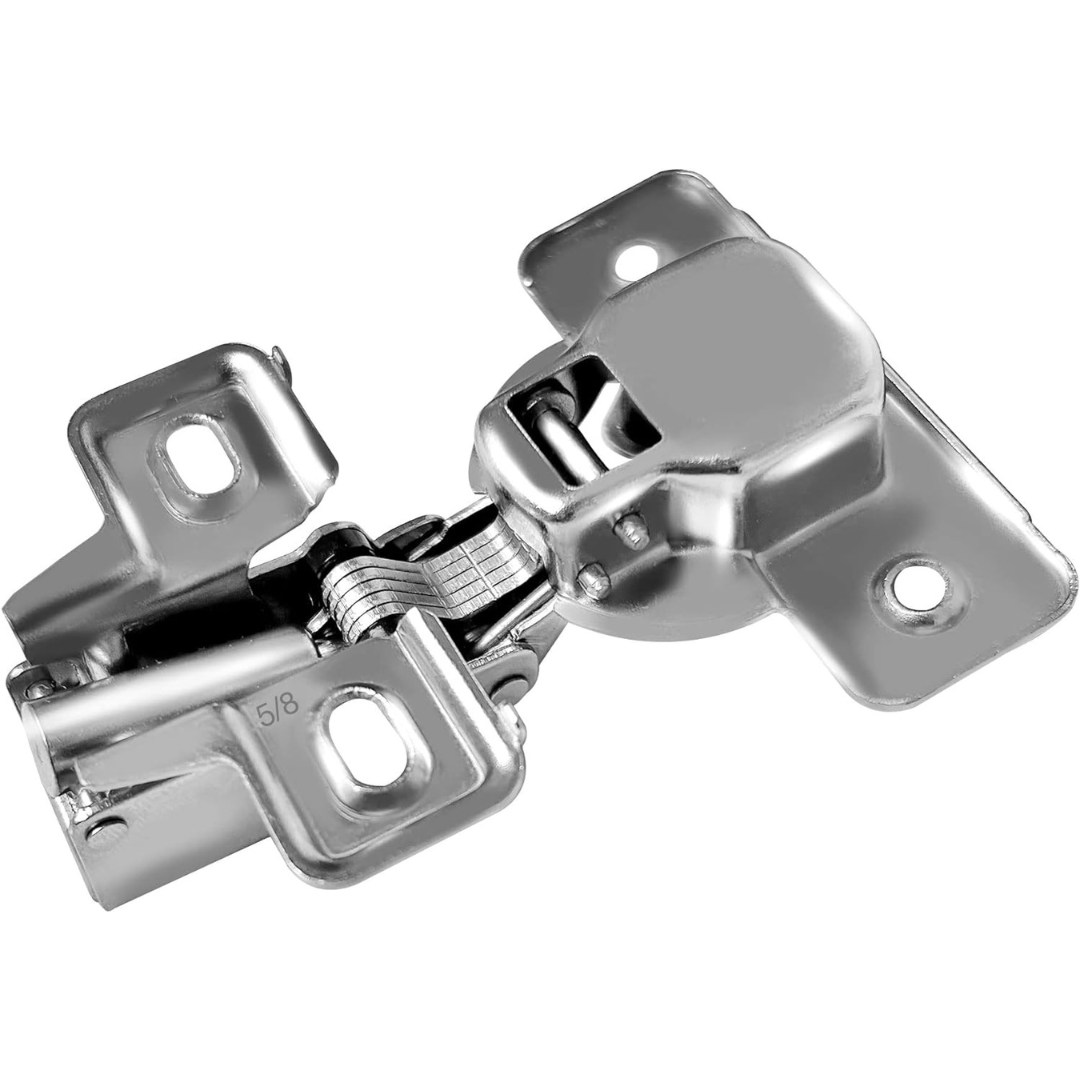

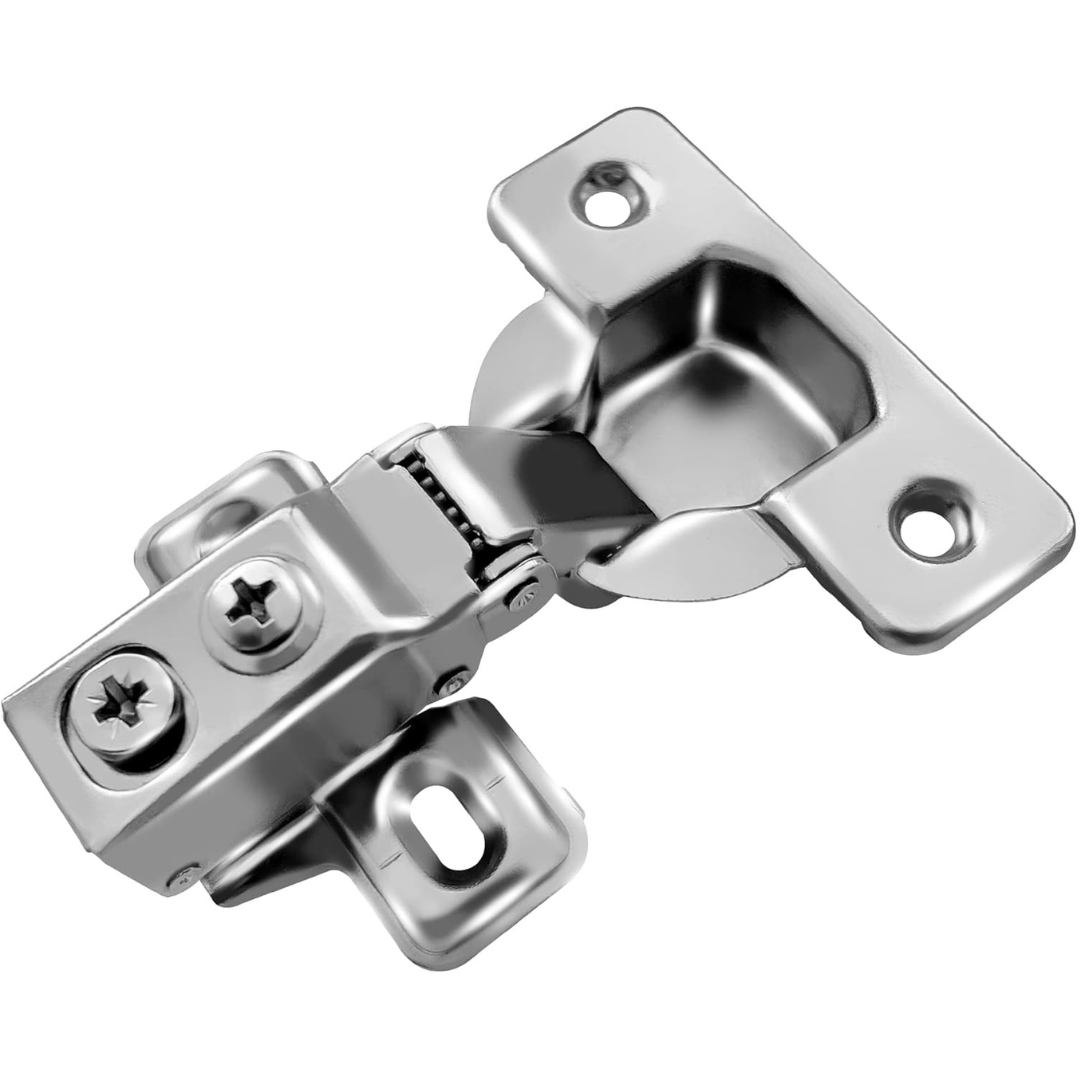

105° Soft Close Cabinet Hinges – 5/8" Overlay for Face Frame & Frameless Cabinets

Regular price: $37.99

Regular price: $37.99

Quantity

Product Description

These 105° soft close 5/8" overlay cabinet hinges are designed for face frame and frameless cabinet doors that need smooth, quiet operation and accurate alignment. Built with a soft-close mechanism, 3D adjustability, and a concealed hinge design, they are ideal for kitchen cabinets, wardrobes, TV cabinets, bookcases, wine racks, and other cabinet applications requiring a 5/8 inch overlay fit.

Package Includes

• 20 Soft Close 5/8" Overlay Hinges
• Installation Screws

Best For

• 5/8" overlay cabinet doors
• Face frame cabinets
• Frameless cabinet applications
• Kitchens, wardrobes, bookcases, and wine racks

Main Benefits

• Quiet soft-close door movement
• Precise 5/8" overlay fit
• 3D adjustment for accurate alignment
• Concealed design for a clean cabinet look

Key Features

5/8" Overlay Fit: Designed for cabinet doors requiring a 5/8 inch overlay, helping create accurate alignment and consistent spacing.
Soft-Close Mechanism: Built-in damping helps the cabinet door close gently and quietly while reducing slamming and long-term wear.
3D Adjustability: Allows precise door adjustment for better vertical, horizontal, and depth alignment after installation.
Durable Construction: Stainless steel construction with a satin nickel finish provides rust resistance and long-lasting performance.
Concealed Cabinet Design: Hidden hinge structure creates a clean, modern look for face frame and frameless cabinet doors.

Specifications

Overlay Type5/8" Overlay

Cabinet TypeFace Frame & Frameless

Opening Angle105°

Closing TypeSoft Close

Adjustment3D Adjustable

Cup Diameter35mm

Cup Depth11mm

Hole Distance45mm

MaterialStainless Steel

FinishSatin Nickel

Not Sure How Many Hinges You Need?

Enter your cabinet height and let the hinge quantity calculator do the work. Get accurate hinge counts fast, then order the right hardware from Berta Store.

Versatile Applications

Perfect for kitchen cabinets, wardrobes, TV cabinets, bookcases, wine racks, closets, and storage cabinets, these 5/8" overlay soft close hinges are suitable for both face frame and frameless cabinet applications.

Upgrade your cabinets with a premium set of soft-close concealed hinges built for reliable, quiet, and long-lasting performance.

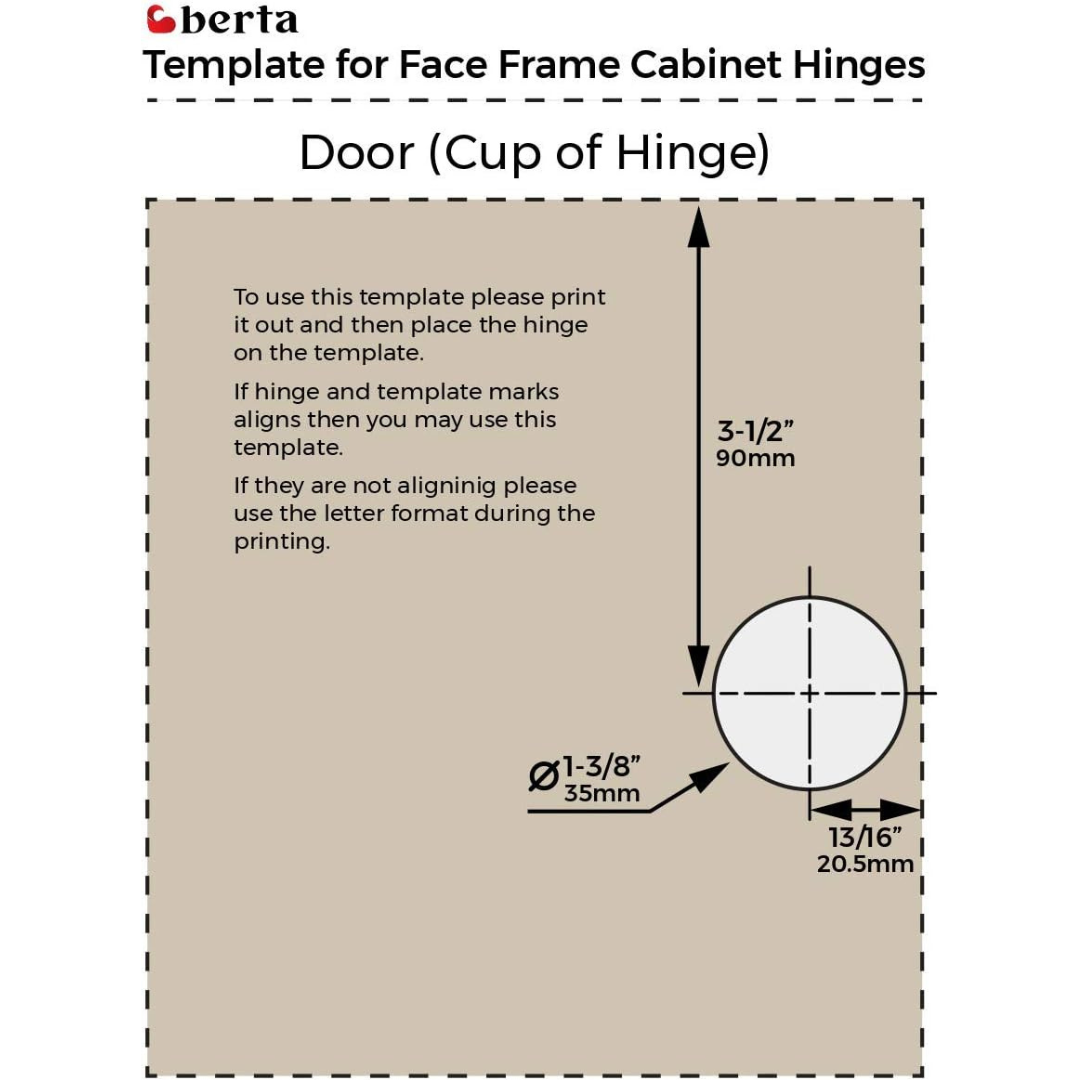

5/8" Overlay Cabinet Hinge Installation Template

Download the printable installation template for 5/8" overlay cabinet hinges. This PDF guide helps accurately position hinge cups, drill mounting holes, and ensure proper door alignment during installation. Designed for 105° soft close 5/8" overlay cabinet hinges used with face frame and frameless cabinets.

Download Installation Template PDF

How to Choose and Install Cabinet Hinges – Step-by-Step Video Guides

Cabinet Hinges – Soft Close, Frameless, Face Frame & Inset Hinges

Soft Close Cabinet Hinges Overlay & Inset Hinges Corner & Lazy Susan Hinges Face Frame Hinges

Customers also bought

Berta Store Partial Overlay Cabinet Hardware

105° Soft Close 5/8" Overlay Hinges for Face Frame & Select Frameless Cabinets

These 5/8" overlay soft close cabinet hinges are designed for cabinet doors that overlap the cabinet frame or cabinet side by 5/8 inch. With a 105° opening angle, concealed cup design, 3D adjustability, and smooth soft-close action, they are a strong choice for face frame cabinets and select frameless partial-overlay cabinet layouts.

20 Piece Pack 5/8" Overlay 105° Opening Soft Close 3D Adjustable

5/8"

Built for doors that overlap the cabinet frame by 5/8 inch. This partial-overlay fit is common on face frame cabinets where part of the frame remains visible after the door is closed.

Measure your overlay before ordering. If your door fully covers the cabinet side, a full-overlay hinge may be the better match.

5/8" Overlay Fit

Designed for cabinet doors that overlap the cabinet frame or cabinet side by 5/8 inch.

Soft Close Motion

Built-in soft-close action helps the door close smoothly and quietly without slamming.

105° Opening

Provides comfortable cabinet access for kitchens, closets, vanities, and built-in storage.

Precise Adjustment

3D adjustability helps fine-tune door position for clean alignment and consistent gaps.

What Is a 5/8" Overlay Cabinet Hinge?

A 5/8" overlay cabinet hinge is made for cabinet doors that cover the cabinet frame by 5/8 inch when closed. This is a partial-overlay layout, meaning the door covers part of the frame but does not fully hide it. Choosing the correct overlay size helps the door sit in the right position, close properly, and maintain even spacing.

Best Applications

Face frame cabinets with 5/8" partial-overlay doors
Select frameless cabinets where the measured overlay is 5/8"
Kitchen cabinets, bathroom vanities, closets, and built-ins
Replacement projects for older partial-overlay hinges
Cabinet upgrades where quiet soft-close performance is needed

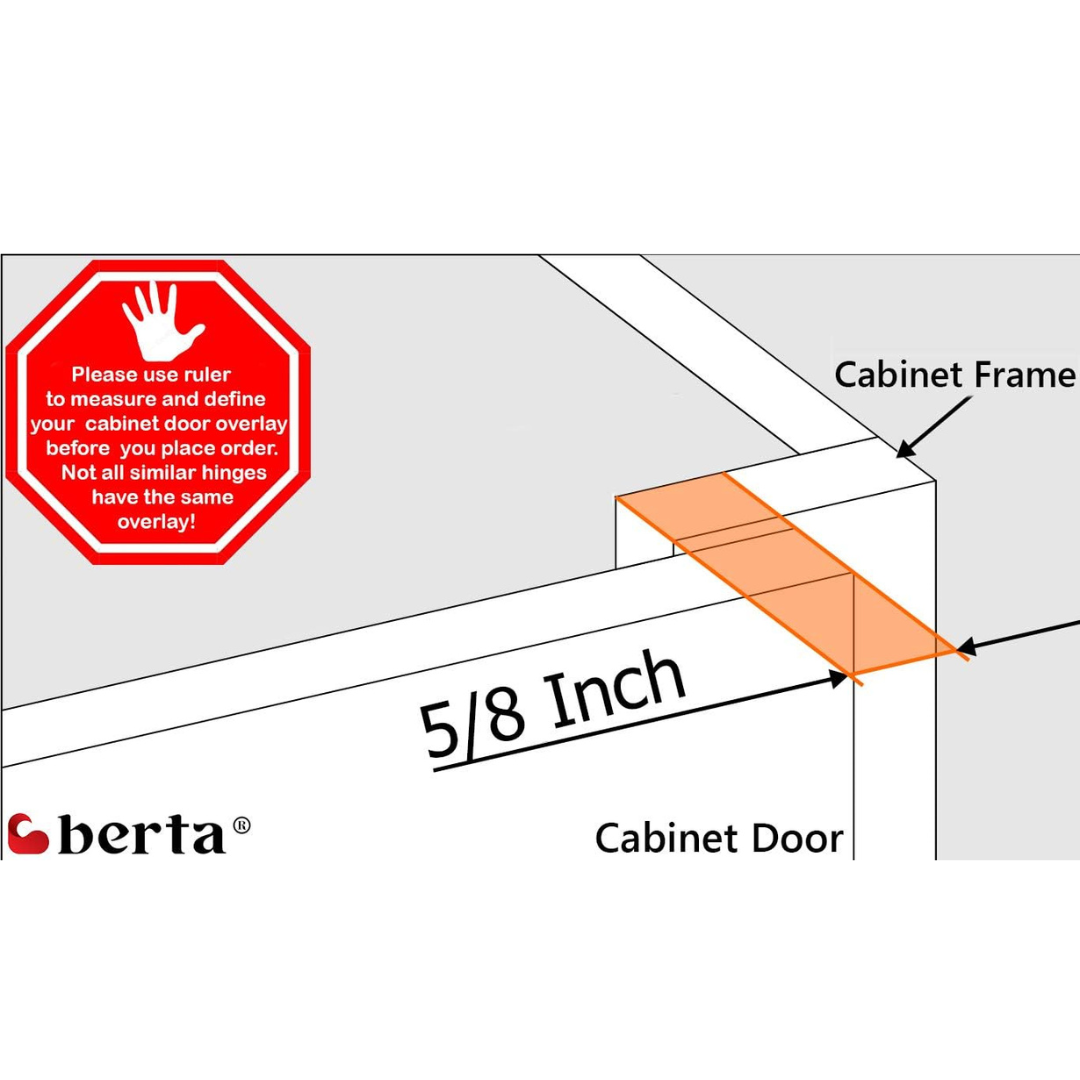

How to Measure Cabinet Door Overlay

Measuring overlay before installation is the most important step. The overlay is the amount the cabinet door covers the frame or cabinet opening when the door is closed.

Close the Door

Close the cabinet door completely so it sits in its normal finished position over the frame or opening.

Mark the Edge

Lightly mark where the door edge lands on the cabinet frame or cabinet side.

Measure the Overlap

Open the door and measure from the cabinet opening edge to the mark. If it measures 5/8", this hinge is designed for that overlay.

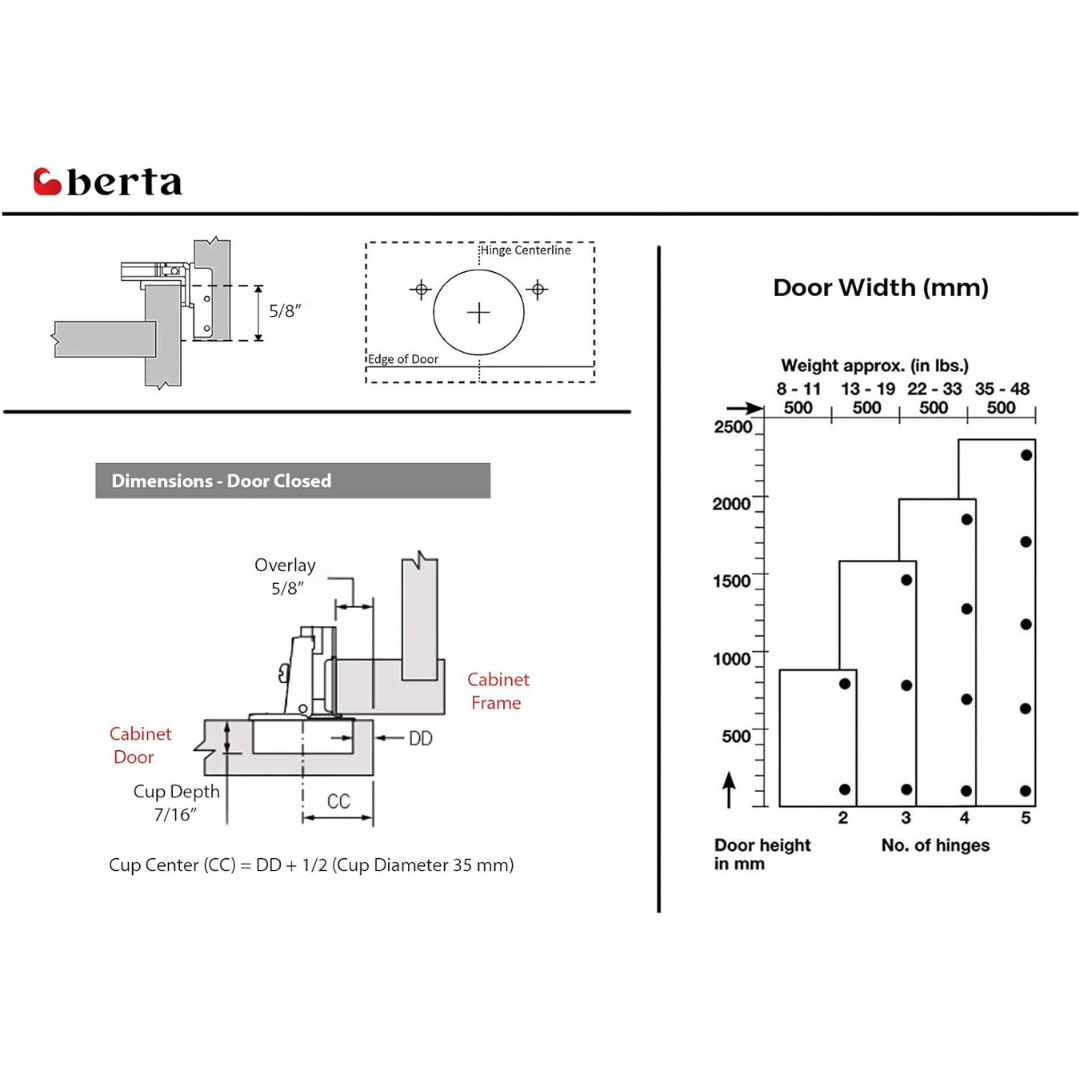

Product Specifications

Check the overlay size, cup drilling, hole distance, and cabinet door thickness before ordering. This 20-piece set includes hinges and installation screws.

Overlay Type5/8 Inch

Opening Angle105°

Closing TypeSoft Close

Adjustment3D Adjustable

Cup Diameter35 mm / 1-2/5"

Cup Depth11 mm / 2/5"

Hole Distance45 mm / 1-4/5"

Door Thickness16–24 mm / 5/8"–1"

MaterialStainless Steel

FinishSatin Nickel

Pack Size20 Hinges

HardwareInstallation Screws Included

5/8" Overlay vs Full Overlay vs Inset Hinges

Cabinet hinge selection depends on how the door sits on the cabinet. A 5/8" overlay hinge is different from a full-overlay hinge or an inset hinge, so matching the hinge type to the cabinet layout helps avoid alignment and closing problems.

5/8" Overlay Hinges

Best when the door overlaps the cabinet frame by 5/8 inch. This product is designed for partial-overlay cabinet doors, especially common on face frame cabinets.

Full Overlay Hinges

Best when the door fully covers the cabinet box or frame edge. Compare full overlay soft close hinges when you need a cleaner full-coverage door layout.

Inset Hinges

Best when the door sits inside the cabinet opening instead of overlapping it. Inset layouts require a different hinge style than a 5/8" overlay door.

Face Frame & Frameless Compatibility

5/8" overlay hinges are most commonly used on face frame cabinets because the door partially covers the frame. They may also work on select frameless cabinet designs when the cabinet layout, door overlay, cup drilling, and mounting measurements match the hinge specifications. Always measure the overlay before installation.

Installation Checklist

Confirm the door overlay measures 5/8 inch.
Confirm the cabinet door thickness is between 16 mm and 24 mm.
Check the 35 mm cup diameter and 11 mm cup depth.
Use the included installation screws for mounting.
Adjust vertically, horizontally, and in depth for clean final alignment.

Why Soft Close Hinges Improve Cabinet Performance

Soft close cabinet hinges use an internal damping system to control the final movement of the cabinet door. Instead of slamming shut, the door slows down and closes more quietly. This helps reduce noise, protects the cabinet frame and door edge, and creates a smoother feel in everyday use.

Cabinet Hinges Browse Berta Store hinge options for overlay, inset, face frame, frameless, and specialty cabinet projects. 110° Half Overlay Soft Close Compare another partial-overlay option for frameless shared-partition cabinet doors. 105° Face Frame Hinges Compare soft-close hinge options designed for framed cabinet construction. Full Overlay Soft Close Hinges Choose this style when the cabinet door needs to fully cover the cabinet box or frame.

Frequently Asked Questions About 5/8" Overlay Soft Close Hinges

What is a 5/8 overlay cabinet hinge?

A 5/8 overlay cabinet hinge is designed for cabinet doors that overlap the cabinet frame by 5/8 inch when closed. This partial-overlay layout is common on face frame cabinets.

How do I know if I need a 5/8 overlay hinge?

You need a 5/8 overlay hinge if your cabinet door overlaps the cabinet opening or frame by 5/8 inch. Measure from the cabinet opening edge to the door edge when the door is closed.

Are 5/8 overlay hinges used for face frame cabinets?

Yes. 5/8 overlay hinges are most commonly used for face frame cabinets where the door partially covers the cabinet frame.

Can 5/8 overlay hinges be used on frameless cabinets?

They can be used on select frameless cabinet layouts if the door overlay and mounting measurements match the hinge specifications. Many frameless cabinets use full overlay hinges, so measurement is important.

What is the difference between 5/8 overlay and full overlay hinges?

A 5/8 overlay hinge allows the door to partially cover the frame by 5/8 inch. A full overlay hinge allows the door to cover the cabinet box or frame more completely for a more seamless appearance.

What is the difference between 5/8 overlay and inset hinges?

A 5/8 overlay hinge is for a door that overlaps the cabinet opening. An inset hinge is for a door that sits inside the cabinet opening, flush with the cabinet face.

Do these hinges include soft close?

Yes. These hinges include a built-in soft-close mechanism that helps the cabinet door close smoothly and quietly without slamming.

Are these hinges adjustable after installation?

Yes. These hinges are 3D adjustable, allowing you to fine-tune the door vertically, horizontally, and in depth after installation.

What door thickness works with these hinges?

These hinges are suitable for cabinet doors between 16 mm and 24 mm thick, which is approximately 5/8 inch to 1 inch.

How many hinges do I need per cabinet door?

Most standard cabinet doors use two hinges. Taller, wider, or heavier doors may require three or more hinges for proper support and alignment.

Do these hinges come with installation screws?

Yes. This 20-piece set includes installation screws for mounting.

Where can I buy 5/8 overlay soft close cabinet hinges?

You can order 5/8 overlay soft close cabinet hinges directly from Berta Store with bulk pricing and fast delivery available for cabinet hardware projects.

Upgrade 5/8" Overlay Doors with Smooth 105° Soft Close Performance

This 20-pack includes Berta 5/8" overlay soft-close hinges and installation screws for face frame and select partial-overlay cabinet applications.
